⚠️ Custom-made product — Right of withdrawal does not apply

This product is manufactured or configured to your specifications. Under Article L221-28 of the French Consumer Code, the right of withdrawal does not apply to goods made to the consumer’s specifications or clearly personalized.

Before placing your order, please make sure this product meets your needs. Our team is available to advise you at 03 66 88 17 85.

Ecosoft OC5000 controller – 1,500 L/h version

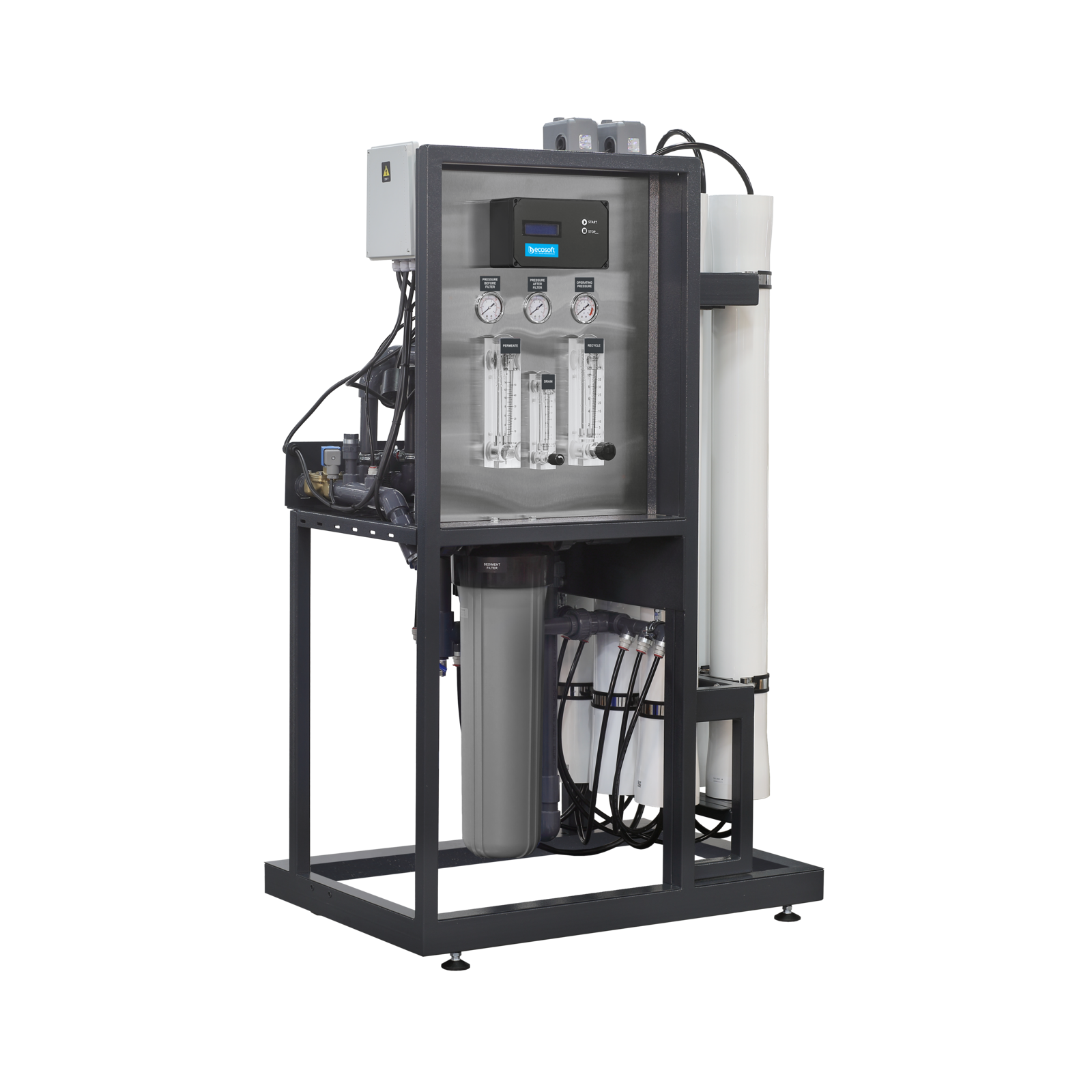

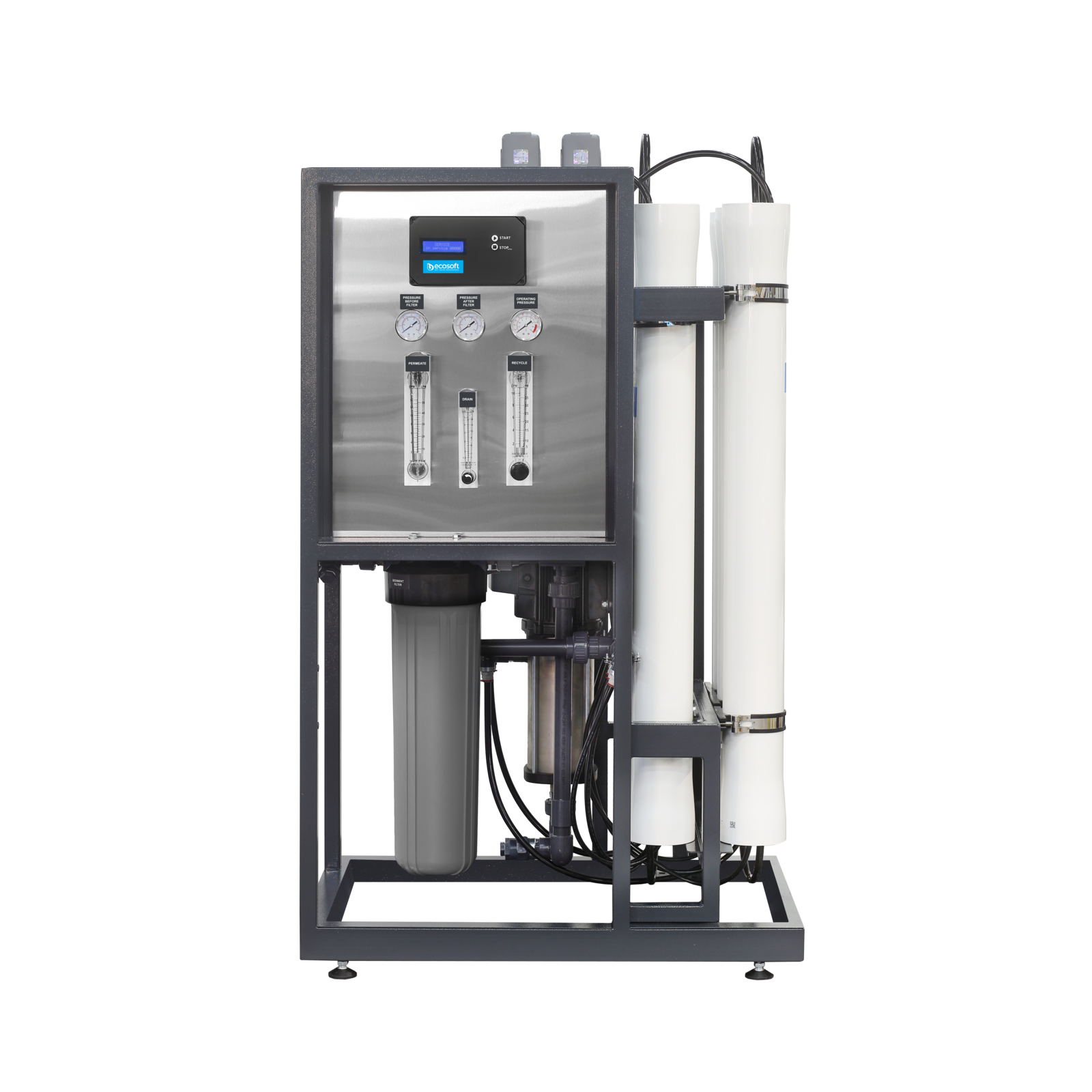

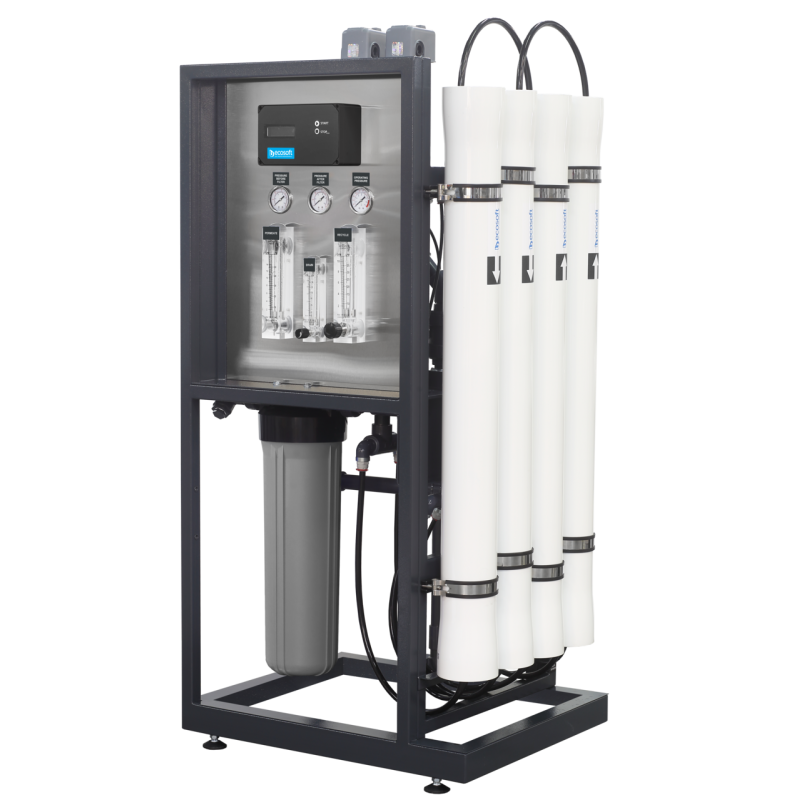

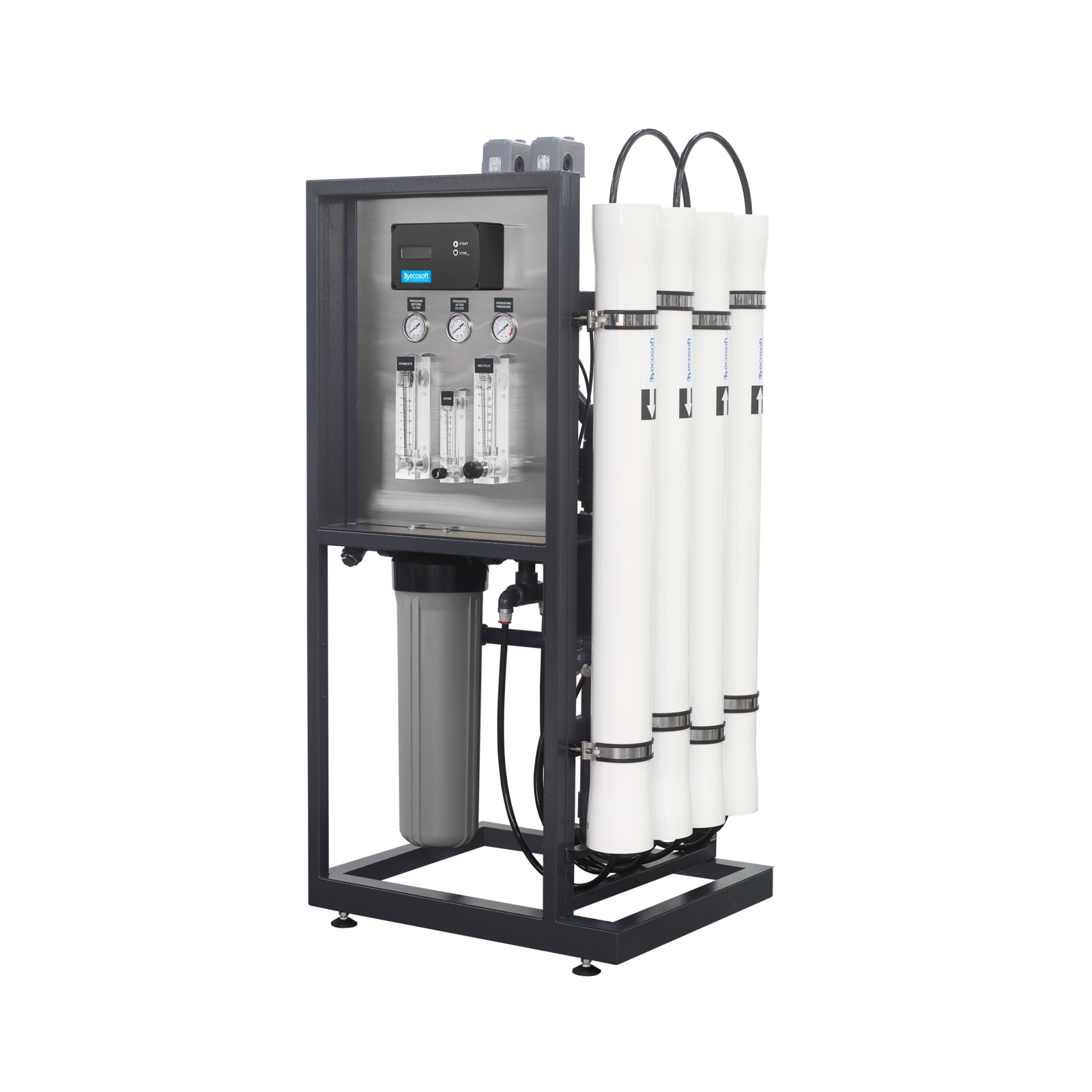

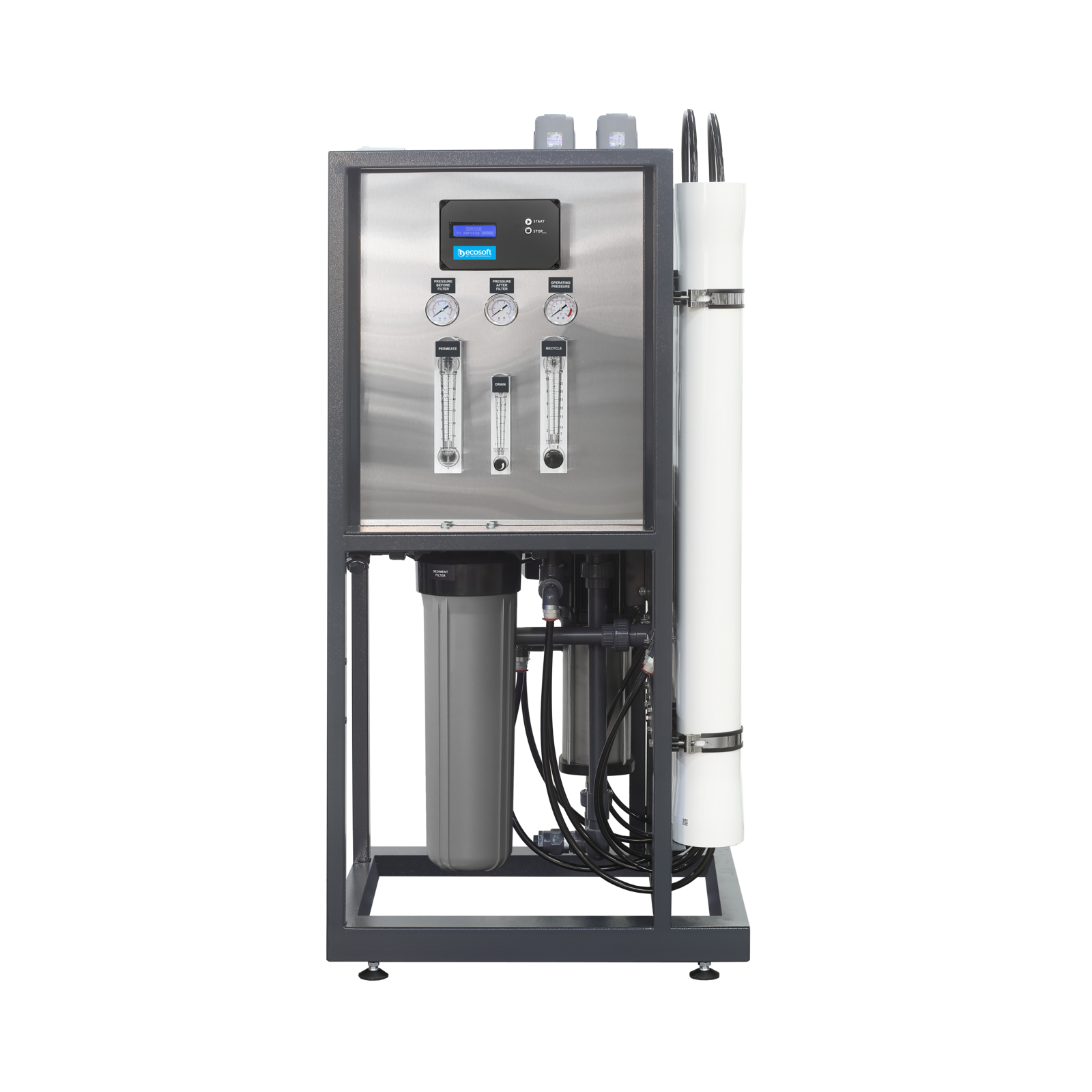

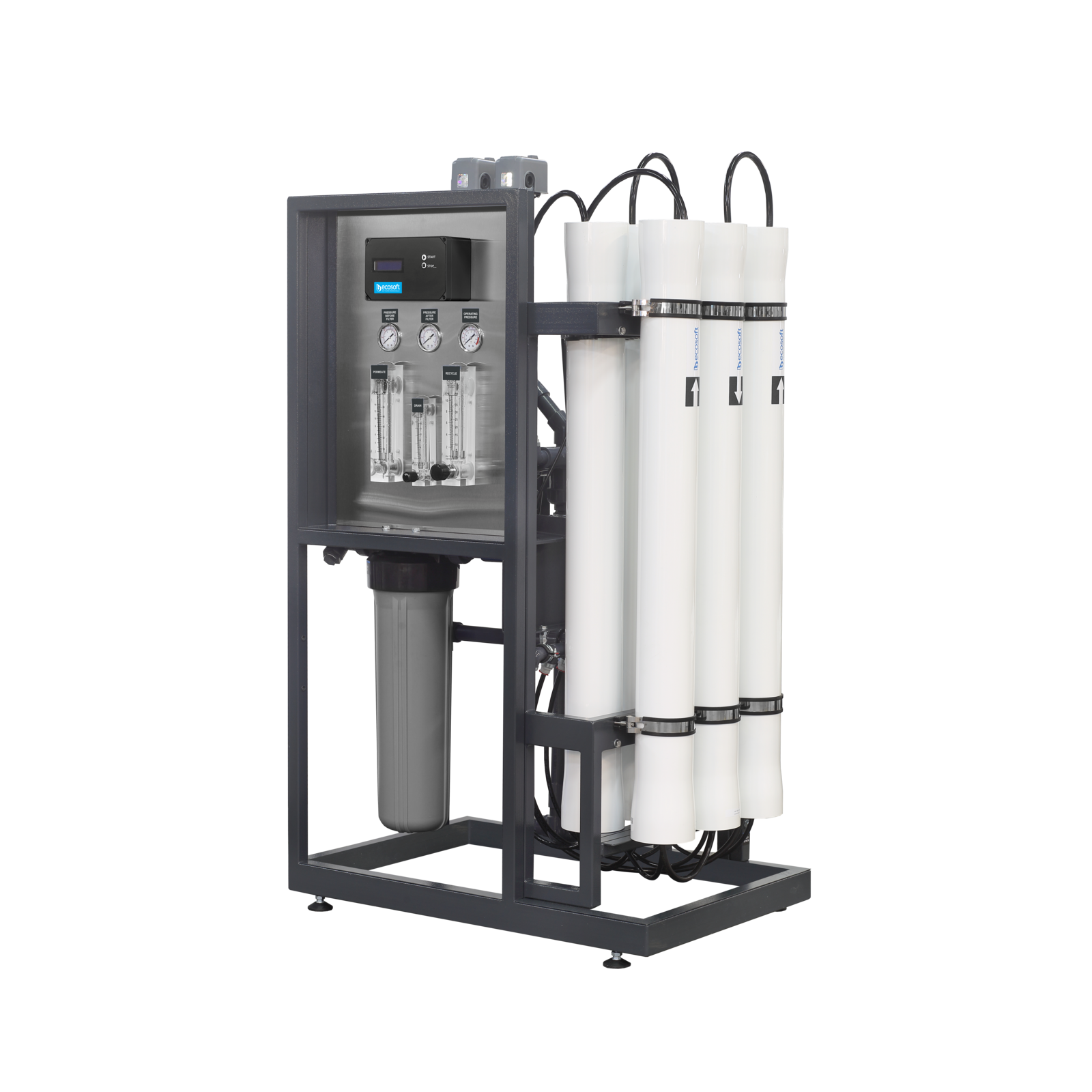

This RO system is designed for easy operation thanks to its construction and control panel. The system also allows you to connect optional flushing and raw water blending features.

Manufactured in Europe, this equipment complies with the safety standards required by the European Union.

The OC5000 controller provides features including:

• automatic equipment startup and shutdown in response to a signal ;
• emergency shutdown in the event of dry running or overpressure ;
• equipment shutdown via an external STOP signal.

Ecosoft OC6000 controller – 1,000 L/h version

In addition to the features offered by the OC5000 controller, the OC6000 provides remote access to the machine.

• Grundfos® CR 3-14 pump
• 300 psi membrane housings (over 20 bars)
• 4.5" × 20" sediment pre-filter included
• Electrical panel with Ecosoft OC6000 controller for the 1,000 L/h version
• Electrical panel with Ecosoft OC5000 controller for the 1,500 L/h version
• Danfoss solenoid valves
• Piping and control instruments
• Steel frame
• Wooden crate

Chlorine present: if your water contains more free chlorine, install an activated carbon system upstream.

Water too hard: to reduce the risk of scaling and extend membrane life, add a water softener upstream.

Limescale treatment with a water softener

Limescale can quickly clog reverse osmosis membranes, even with regular flushing. It is therefore recommended that you neutralize it upstream using a salt-based or CO₂ water softener.

With a salt-based water softener, magnesium and calcium are replaced with sodium that does not form scale. The system requires periodic salt replenishment and resin replacement after several years of use.

Download the duplex water softener data sheet

With a CO₂ water softener , carbonate is converted into bicarbonate that does not form scale. The system is more compact, requires no drain, and operates at flow rates up to 5 m³/h. The CO₂ cylinder needs to be replaced approximately every 100 m³ of water. You can also add a system that lets you connect up to 6 cylinders and an empty cylinder detector .

Chlorine treatment with activated carbon

Chlorine damages RO system membranes and must be removed upstream using an activated carbon system paired with an electronic valve.

Download the data sheet for this option

Under the most demanding dechlorination conditions, the expected minimum capacity is 150 to 200 m³ of treated water per kilogram of activated carbon.

* Performance depends on feed water TDS, temperature, and the selected recirculation setting.

** Values are given for water with low hardness or a low concentration of scale-forming particles.
