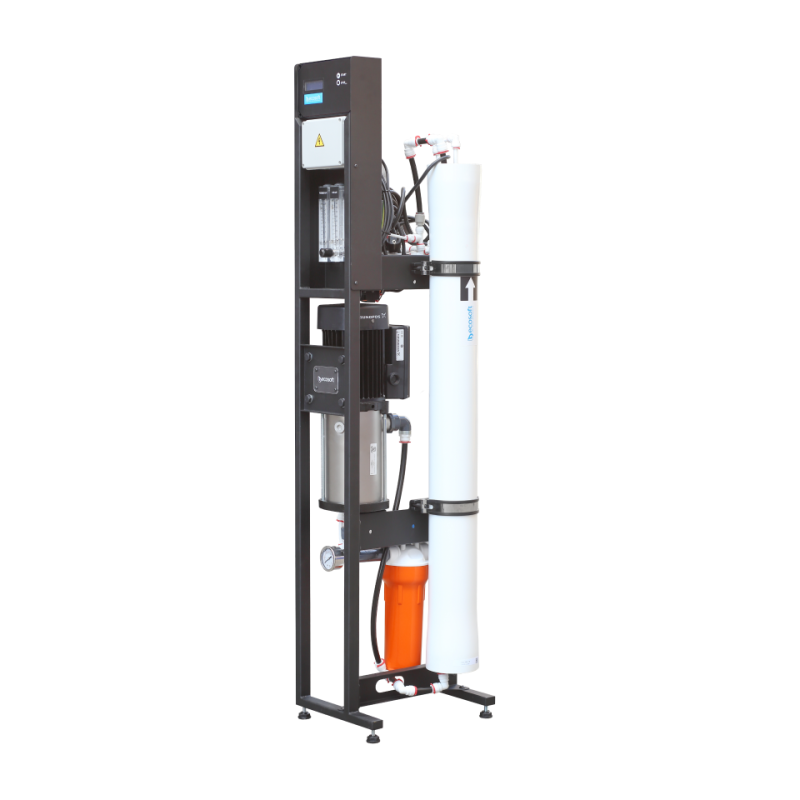

Ecosoft Industrial RO System 250 l/h - Complete Range

Discover this 250 l/h RO system and the extraordinary possibilities it offers without breaking your budget!

Ecosoft industrial RO systems combine high filtration capacity with a minimal footprint and can treat a wide variety of water types thanks to multiple options.

The models shown here are also available in a 250 l/h version, and we also offer a full range of industrial RO systems from 1 to 50 m3/h.

Ecosoft Industrial RO System 250 l/h - Complete Range

  • | Delivery in mainland France within 2 to 3 weeks
    • €3,350.00 HT

    1. Chlorine Disinfection

    2. 25-Micron Pre-Filtration

    3. Sand Filter

    4. Membrane Selection

    5. Version

    6. Iron Removal

    7. Water Softener

    8. Activated Carbon

    Your configuration
      Your configuration total tax incl.

      Need advice, information or a quote?

      Contact us directly by phone or email.

      03 66 88 17 85 By email

      Monday to Friday, 9:30 am to 5 pm (French time). Standard-rate call.

      Josmose stands behind every RO system delivered.

      • Delivery in 24 to 48 h, free from €150 in mainland France.
      • Payment in 3 or 4 installments, interest-free.
      • Phone support 5 days a week, 9:30 am to 5 pm (French time), before and after your purchase.



      Quantity
      Delivery in mainland France within 2 to 3 weeks

        Specifications

        Technical specifications

        Comparison of the different configurations

        Specification MO5000TP5
        Eco        		 MO6500TP5
        Pro        		 MO6500TI6
        Advanced        		 MO6500BI6
        Brackish water
        Preview MO5000TP5 Eco industrial RO system MO6500TP5 Pro industrial RO system MO6500TI6 Advanced industrial RO system MO6500BI6 brackish water industrial RO system
        Net weight 45 kg 55 kg 55 kg 100 kg
        Gross weight 60 kg 80 kg 80 kg 130 kg
        System dimensions 29 × 36 × 148 cm 54 × 39 × 145 cm 54 × 39 × 145 cm 49 × 34 × 163 cm
        Crate dimensions 30 × 40 × 165 cm 60 × 45 × 155 cm 60 × 45 × 155 cm 50 × 40 × 175 cm
        Water quality limit 3,000 ppm
        ≈ 5,000 µS/cm        		 3,000 ppm
        ≈ 5,000 µS/cm        		 3,000 ppm
        ≈ 5,000 µS/cm        		 10,000 ppm
        ≈ 16,000 µS/cm
        Recovery rate * 75 %
        1 L of drain water for every 3 L produced        		 75 %
        1 L of drain water for every 3 L produced        		 75 %
        1 L of drain water for every 3 L produced        		 Depends on inlet water quality
        Inlet flow rate during filtration 320 to 400 L/h 320 to 400 L/h 320 to 400 L/h 400 to 800 L/h
        Flushing flow rate Not specified 1,500 to 2,000 L/h 1,500 to 2,000 L/h Not specified
        Operating pressure 8 to 12 bars 8 to 12 bars 8 to 12 bars 15 to 20 bars
        Maximum pressure 14 bars 14 bars 14 bars 25 bars
        Control panel OC5000 OC5000 OC6000 OC6000
        Electrical power 0.7 kW 0.7 kW 0.7 kW 1.6 kW
        Pre-filter micron rating 5 µm 5 µm 5 µm Not specified
        Power supply 220–230 V / 50 Hz 220–230 V / 50 Hz 220–230 V / 50 Hz 220–230 V / 50 Hz

        * Indicative recovery rate: the 75 % value applies to water with low hardness or low levels of particles that could cause scaling on the membranes. Actual performance may vary depending on feed water quality and operating conditions.

        Recommendations & Pretreatments

        Recommendations & pretreatments

        Protect your membranes and optimize performance

        Raw water quality directly affects the performance, recovery rate, and service life of reverse osmosis membranes. Depending on your water's composition, certain pretreatments may be essential to protect your system and maintain its performance over time.

        Particles and coarse debris

        Sand filter treatment

        If your water contains coarse debris that could clog your piping, it is essential to trap it upstream using a sand filter.

        The proposed system consists of natural zeolite in granules of different sizes:

        • 11 kg of granules between 0.5 and 1 mm
        • 9 kg of granules between 1 and 2 mm

        This filter optimizes particle retention while maintaining a stable flow rate.

        Specifications:
        Empty weight: ≈ 30 kg
        Dimensions: 1.08 m tall × 27 cm in diameter
        Valve: Runxin TM67
        Maximum flow rate: 1.04 m³/h
        Required rinsing flow rate: 1.56 m³/h

        Bacteria

        Chlorination treatment

        Bacteria are one of the main threats to RO membranes. They grow by feeding on the TFC (Thin-Film Composite) material that makes up the membranes.

        When your water comes from a borehole or well, we recommend eliminating bacteria by injecting chlorine (sodium hypochlorite).

        This treatment uses an Athena BD2004 dosing pump, supplied with:

        • Monitoring probe
        • Chlorine storage tank
        • Connection accessories

        Visible impurities

        Micron filter treatment

        If you do not have a sand filter but your water contains visible impurities, we recommend installing a micron pre-filter to protect downstream equipment: your water softener, valves, and membranes.

        Good to know: the filter comes standard with a 25 micron filter cartridge. You can switch to a 20 micron filter cartridge later, particularly if you do not order a supply of filters with your system.

        Iron, ammonium, and manganese

        Iron filter treatment

        Iron, ammonium, and manganese tend to clog reverse osmosis membranes prematurely. When they are present in excessive amounts, a specific treatment is strongly recommended.

        The proposed iron filter consists of:

        • 50 kg of pyrolusite
        • 70 kg of flint forming the support layer

        You need to add approximately 10 % pyrolusite per year to maintain the effectiveness of the filter media.

        Specifications:
        Empty weight: ≈ 150 kg
        Dimensions: 1.58 m tall × 33 cm in diameter
        Valve: Runxin TM67
        Maximum flow rate: 0.52 m³/h
        Required rinsing flow rate: 2.19 m³/h

        Limescale

        Water softener treatment

        Limescale, composed mainly of calcium and magnesium carbonates, can quickly clog reverse osmosis membranes, even with regular rinsing cycles.

        We therefore strongly recommend neutralizing limescale upstream using a salt-based or CO₂ water softener.

        Salt-based water softener

        Calcium and magnesium are replaced with sodium, which does not form scale. This system requires:

        • Regular salt replenishment
        • Resin replacement after approximately 10 years
        • Regeneration cycles that discharge approximately X/10 m³ of water

        Regeneration takes approximately one hour. Duplex systems provide a continuous water supply 24/7.

        Specifications:
        Empty weight: ≈ 50 kg per column
        Dimensions: 1.09 m tall × 22 cm in diameter
        Valve: Runxin TM73
        Maximum flow rate: 0.80 m³/h
        Download the duplex water softener data sheet

        Chlorine and organic compounds

        Activated carbon treatment

        Chlorine is extremely harmful to RO membranes. It must be removed upstream using an activated carbon system.

        This treatment also removes:

        • Organic compounds
        • Tastes and odors
        • Water turbidity and discoloration

        The proposed system contains:

        • 25 kg of mineral-based activated carbon
        • 7 kg of flint
        Specifications:
        Empty weight: ≈ 50 kg
        Dimensions: 1.40 m tall × 31 cm in diameter
        Valve: Runxin TM67
        Maximum flow rate: 0.70 m³/h
        Required rinsing flow rate: 1.85 m³/h

        Estimated service life: in the most demanding dechlorination applications, the minimum service life of activated carbon is estimated at 150 to 200 m³ of treated water per kilogram of carbon.

        Documents

        Documentation

        Industrial RO system manual

        Technical documentation

        Industrial RO system manual

        Consult the industrial RO system documentation for technical information and key equipment instructions.

        Download the manual
