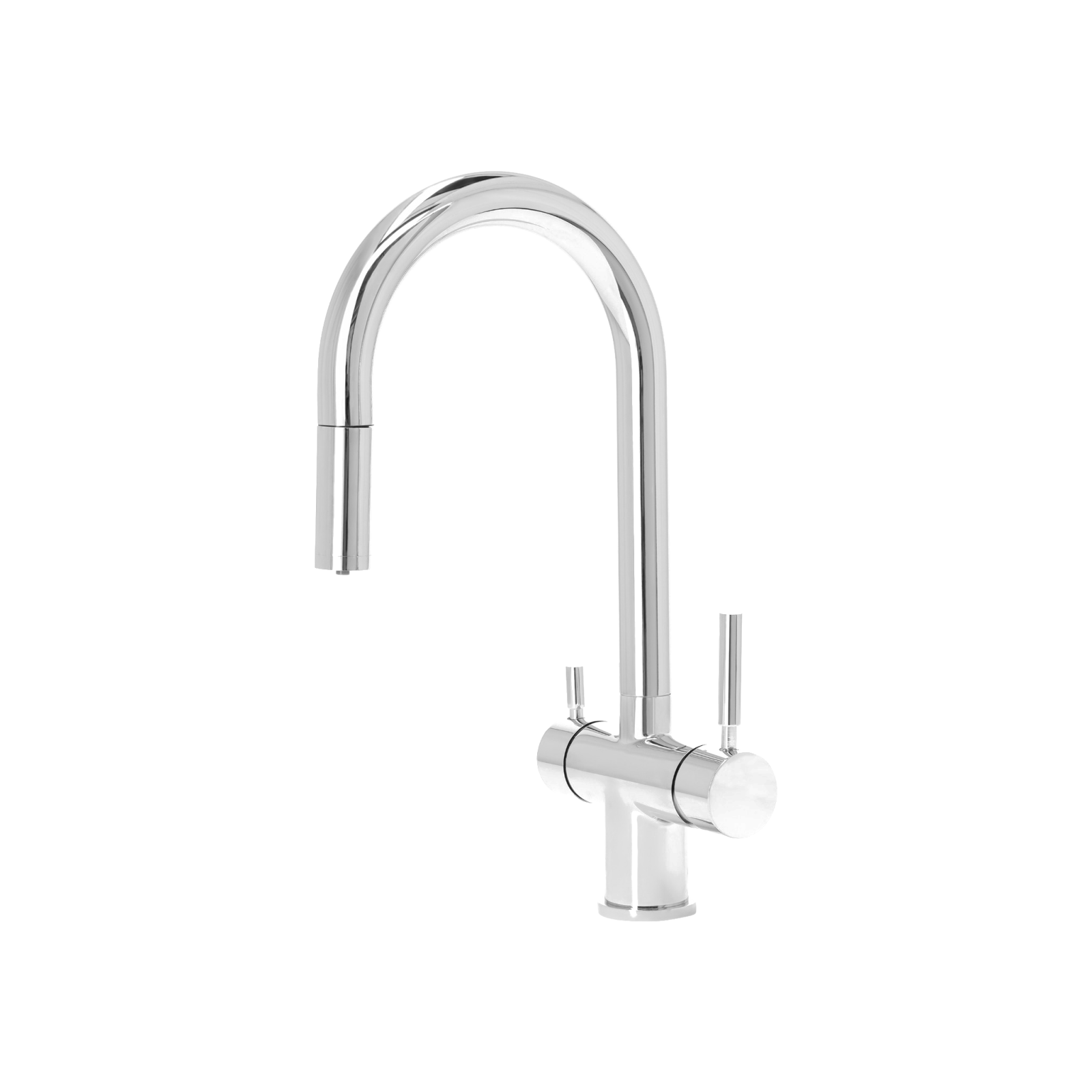

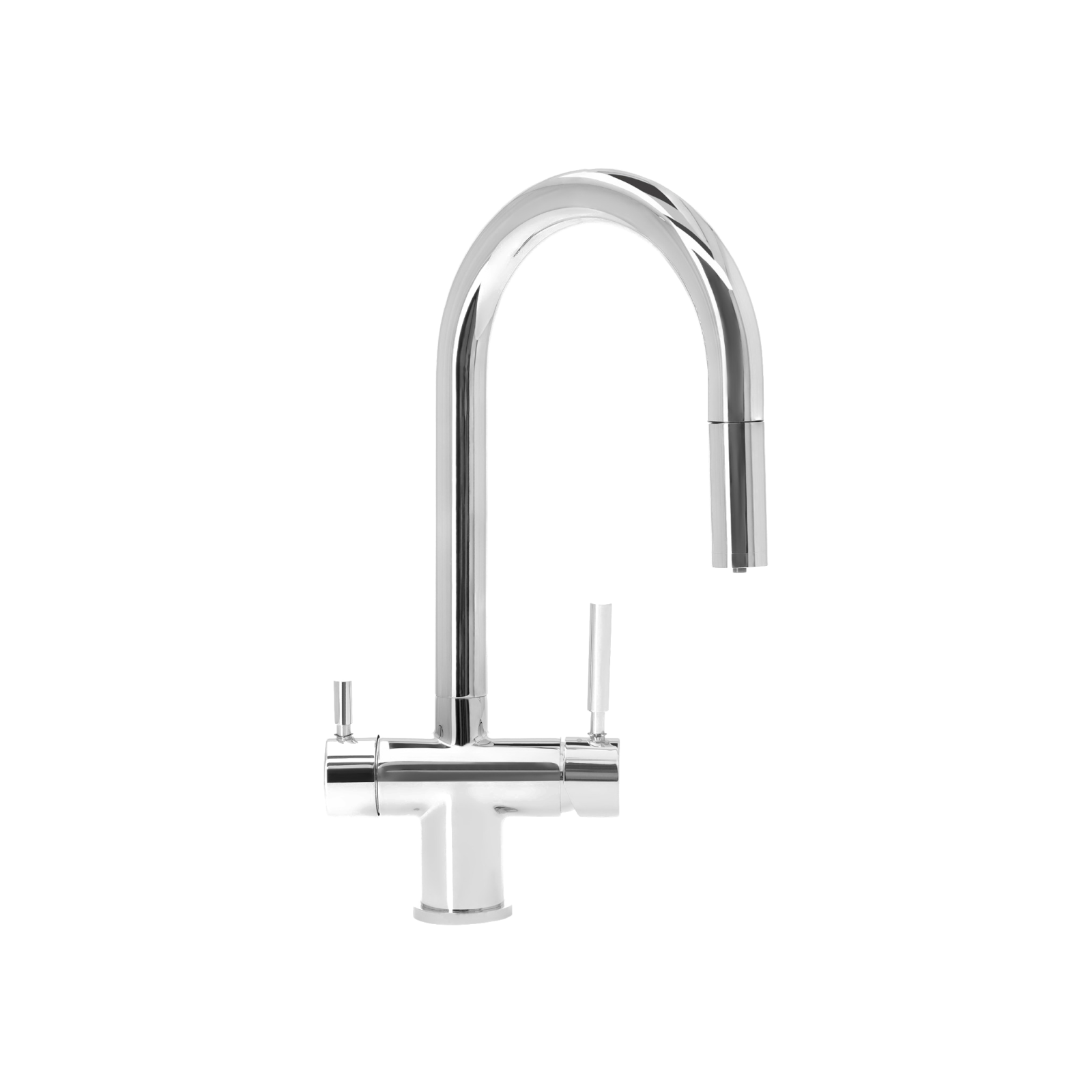

Madrid Faucet - 3-Way - Chrome or Matte Black Sprayer
Faucets
Introducing the Madrid multiway faucet with sprayer
The mixer faucet lets you dispense hot water, cold water and filtered water from your RO system or filtration system through a single faucet.
Its modern design with a high curved spout brings elegance and everyday convenience. Available in chrome or black, it fits perfectly into contemporary kitchens.
Its separate circuit dedicated to purified water eliminates the need to install a second faucet on your sink while keeping filtered water and tap water completely separate.
Benefits of the 3-way faucet with sprayer
- Dispenses hot water, cold water and filtered water
- Modern, minimalist design
- Available in chrome or black finish
- Compatible with home RO systems
- 1/4" connection for filtered water
- Ceramic cartridge
- Easy installation on your sink or countertop
- Low-lead brass body
Technical Specifications
| Specification | Detail |
| Model | Madrid |
| Function | Dispenses hot, cold and filtered water |
| Finish | Chrome / Black |
| Net / gross weight | 2.24 kg / 3.26 kg |
| Body | Low-lead grade 59# brass |
| Spout | Low-lead grade 62# brass |
| Internal purified water tubing | Non-toxic PVB |
| Flexible connections | 3/8” 304 stainless steel – length 600 mm |
| RO system connection | 3/8” adapter + 1/4” adapter |
| Flow rate | 2.2 G/min at 0.5 MPa |
| Water pressure | 0 to 8 kg |
| Operating temperature | 0 to 60°C |
| Mounting hole | 35 mm |
| Package dimensions | 68.5 × 35 × 43.5 cm |
Faucet dimensions
| Dimension | Measurement |
| Overall height | 390 mm |
| Height beneath spout | 190 mm |
| Spout reach | 195 mm |
| Body width | 152 mm |
| Base diameter | 45 mm |
| Drilling diameter | 35 mm |
Materials
- Body : low-lead grade 59# brass
- Spout : low-lead grade 62# brass
- Internal filtered water tubing : non-toxic PVB
- Lever : brass
- Handle cover : zinc alloy
- Flexible hoses : 304 stainless steel

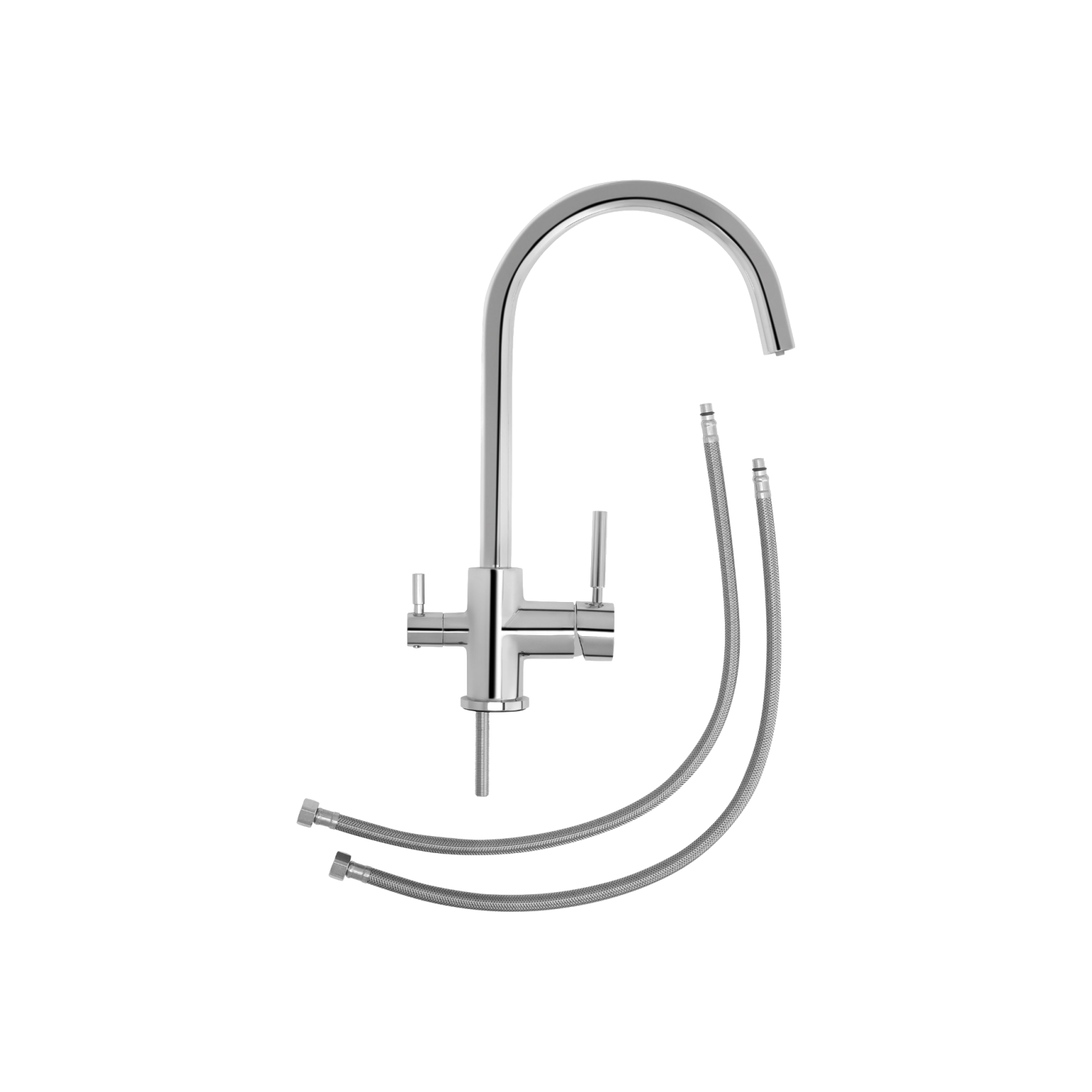

Included items
- 1 SK-3346 / SK-3346B 3-way mixer faucet
- 2 hot water / cold water flexible hoses
- 1 3/8” adapter
- 1 1/4” adapter for RO system
- 1 quick-connect fitting for filtered water tubing
- 1 rubber gasket
- 1 mounting kit
- 1 signal cable
- 1 counterweight
Installation
The faucet installs easily on your sink or countertop with a standard 35 mm mounting hole. The hot and cold water flexible hoses connect directly to your home water supply, while the dedicated filtered water tubing connects to your RO system.
Before installation, we recommend flushing the water lines to remove any impurities that could damage the ceramic cartridge or reduce the flow rate.
Compatibility
The SK-3346 / SK-3346B faucet is compatible with most home RO systems and filtration systems equipped with a 1/4” outlet.
It is an ideal solution for getting filtered water directly from your main faucet without drilling an additional hole in your sink.
