Ecosoft Professional RO System

On this page, you will find the different versions of Ecosoft 500 l/h RO systems and their impressive capabilities, all at a very reasonable price for this level of quality.

The Ecosoft industrial RO systems combine high filtration capacity with a minimal footprint and can treat a wide variety of water types thanks to multiple options.

The models shown here are also available in a 500 l/h version, and we also offer a full range of industrial RO systems from 1 to 50 m3/h.

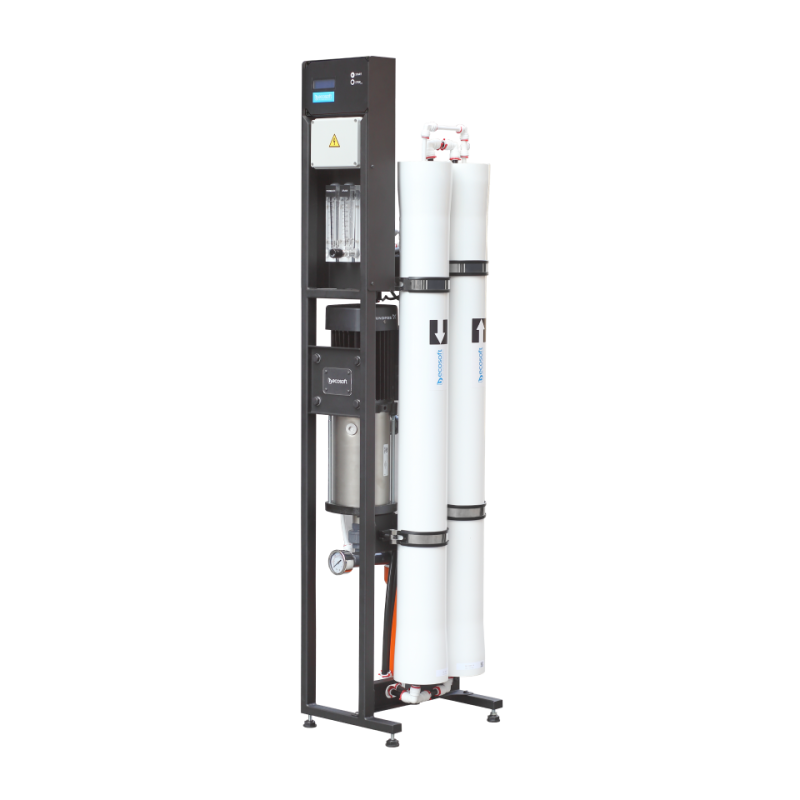

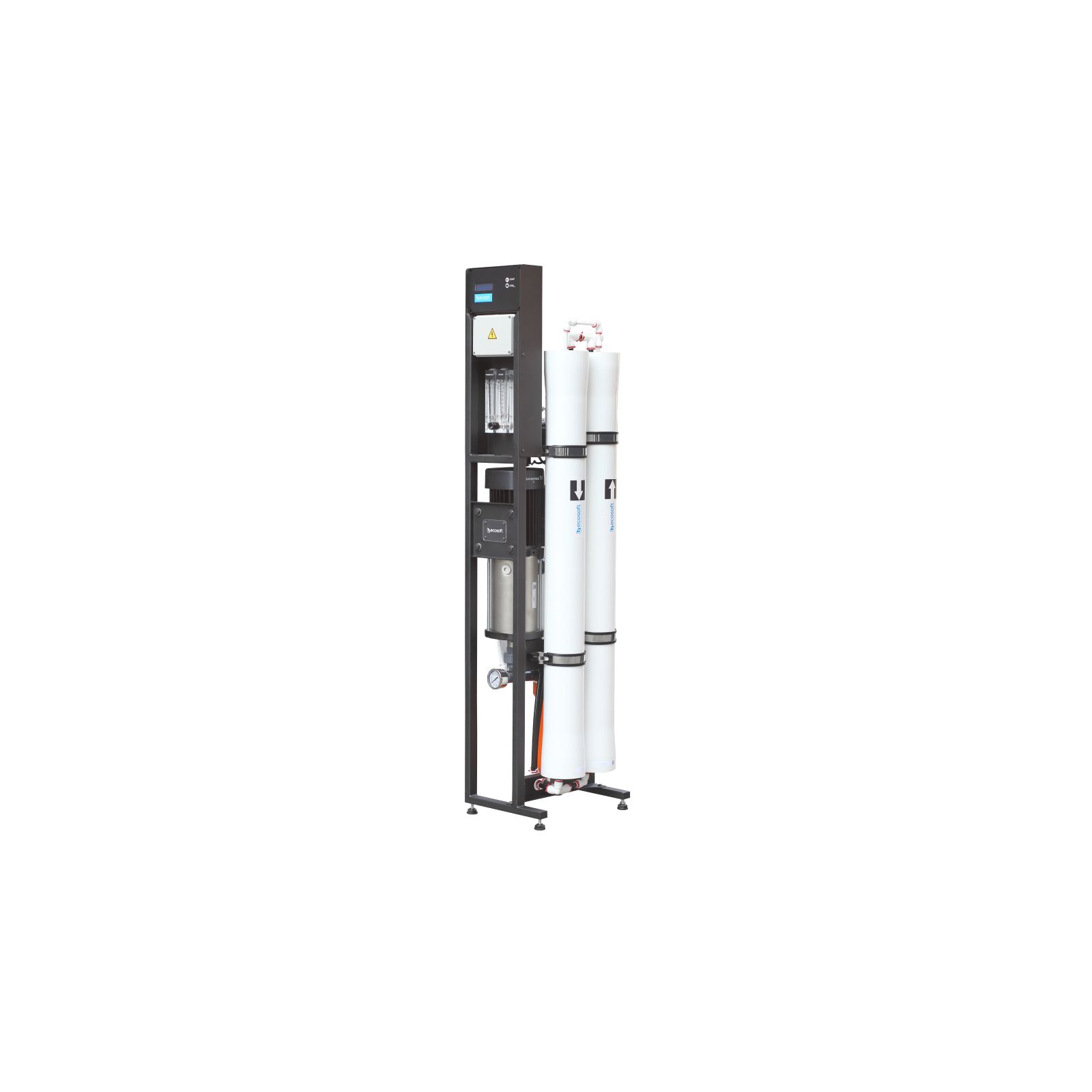

Ecosoft 500 l/h Industrial RO System - Complete Range

  • | Available in 1 to 2 weeks
    • €4,080.00 HT

    1. Chlorine Disinfection

    2. 25-Micron Pre-Filtration

    3. Sand Filter

    4. Membrane Selection

    5. Version

    6. Iron Removal

    7. Water Softener

    8. Activated Carbon System

    Your configuration
      Your configuration total tax incl.

      Need advice, information or a quote?

      Contact us directly by phone or email.

      03 66 88 17 85 By email

      Monday to Friday, 9:30 am to 5 pm (French time). Standard-rate call.

      Josmose stands behind every RO system delivered.

      • Delivery in 24 to 48 h, free from €150 in mainland France.
      • Payment in 3 or 4 installments, interest-free.
      • Phone support 5 days a week, 9:30 am to 5 pm (French time), before and after your purchase.



      Quantity
      Available in 1 to 2 weeks

        Specifications

        Specifications

        MO10000TP5 - Eco MO12000TP5 - Pro MO12000TI6 - Advanced MO12000BI6 - Brackish Water
        Overview MO10000TP5 MO12000TP5 MO12000TI6 MO12000BI6
        Net weight 50 kg 60 kg 110 kg
        Gross weight 65 kg 85 kg 140 kg
        System dimensions (cm) 29x36x148 54x39x145 49x34x163
        Crate dimensions (cm) 30x40x165 60x45x155 50x40x175
        Water quality limit 3,000 ppm (5,000 µm/cm) 10,000 ppm (16,000 µm/cm)
        Recovery rate * 75 % (1 liter of wastewater for every 3 liters produced) Depending on incoming water purity
        Inlet flow rate during filtration (l/h) 650 to 800 800 to 1,600
        Flushing flow rate (l/h) Not specified 1,500 to 2,000 Not specified
        Operating pressure 8 to 12 bars 15 to 20 bars
        Maximum pressure 14 bars 14 bars 14 bars 25 bars
        Control panel OC5000 OC6000
        Electrical power 0.7 kW 1.6 kW
        Pre-filter rating 5 µm Not specified

        * for water with low hardness or containing scale-forming particles

        Recommendations & Pretreatments

        Recommendations

        Recommended pretreatment upstream of your RO system

        Raw water quality directly affects the performance, recovery rate, and service life of reverse osmosis membranes. Depending on your water composition, certain pretreatment steps are essential.

        • Presence of free chlorine:
          If your water contains free chlorine, you must install an activated carbon system upstream of your RO system to protect the membranes.
        • Presence of hardness minerals or recovery rate optimization:
          If your water is hard or you want to improve membrane recovery rate and longevity, installing a water softener upstream of your RO system is strongly recommended.
        • Presence of iron, ammonium, or manganese:
          If iron, ammonium, or manganese concentrations are abnormally high, installing an iron filter upstream of your RO system is recommended to prevent premature fouling of the RO membranes.

        Scale treatment upstream of your RO system

        Scale (calcium and magnesium carbonates) quickly fouls reverse osmosis membranes, even with regular flushing cycles. Anti-scale pretreatment is therefore essential.

        Salt-based water softener

        With a salt-based water softener, calcium and magnesium are replaced by sodium, which does not form scale. This type of water softener requires:

        • regular salt replenishment to ensure ion exchange,
        • resin replacement after approximately 10 years of use,
        • periodic regeneration cycles that discharge approximately X/10 m³ of water to the drain.

        Regeneration takes approximately one hour. Duplex systems include a second resin column to provide a continuous supply of softened water 24/7.

        ? Download the duplex water softener data sheet

        CO₂ water softener (salt-free)

        With a CO₂ water softener, carbonate is converted into bicarbonate, which does not form scale.

        This system offers several advantages:

        • compact footprint,
        • simplified installation with no drain connection,
        • no wastewater,
        • operation with no hardness limit at flow rates up to 5 m³/h,
        • no maintenance.

        The CO₂ cylinder (standard, with a refundable deposit) needs to be replaced approximately every 100 m³. It is available from many distributors (Metro, France Boissons, V&B, Leroy Merlin…). The average cost of a 10 kg refill is approximately 40 €.

        For optimized management, you can add:

        Download the water softener user manual

        Chlorine treatment with activated carbon

        Chlorine is particularly harmful to reverse osmosis membranes. It must be removed upstream using an activated carbon system paired with an electronic flow control valve.

        ? Download the activated carbon system data sheet

        The minimum recommended capacity for effective dechlorination, particularly when organic matter is present, is 150 to 200 m³ of treated water per kilogram of carbon.

        		 Industrial activated carbon system
