Industrial RO system between 4500 and 12000 GPD

This industrial RO system offers excellent value for money, with a production capacity ranging from 5,000 liters to nearly 24,000 liters of pure water per day for water with concentrations ranging from 0 to 10,000 ppm.

Note: these models run on three-phase power (3 phases, 1 neutral, 1 ground)

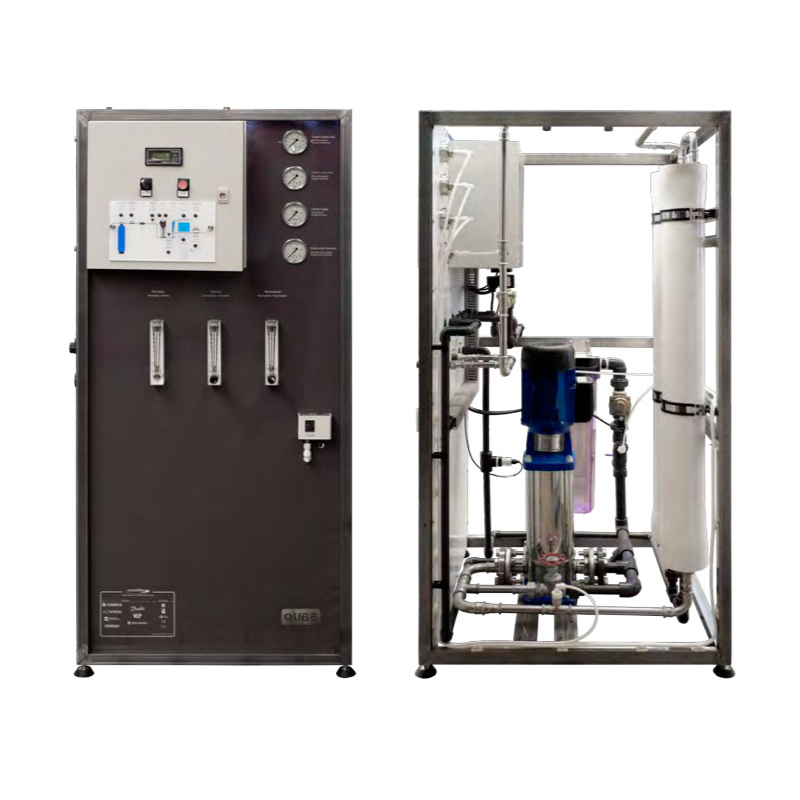

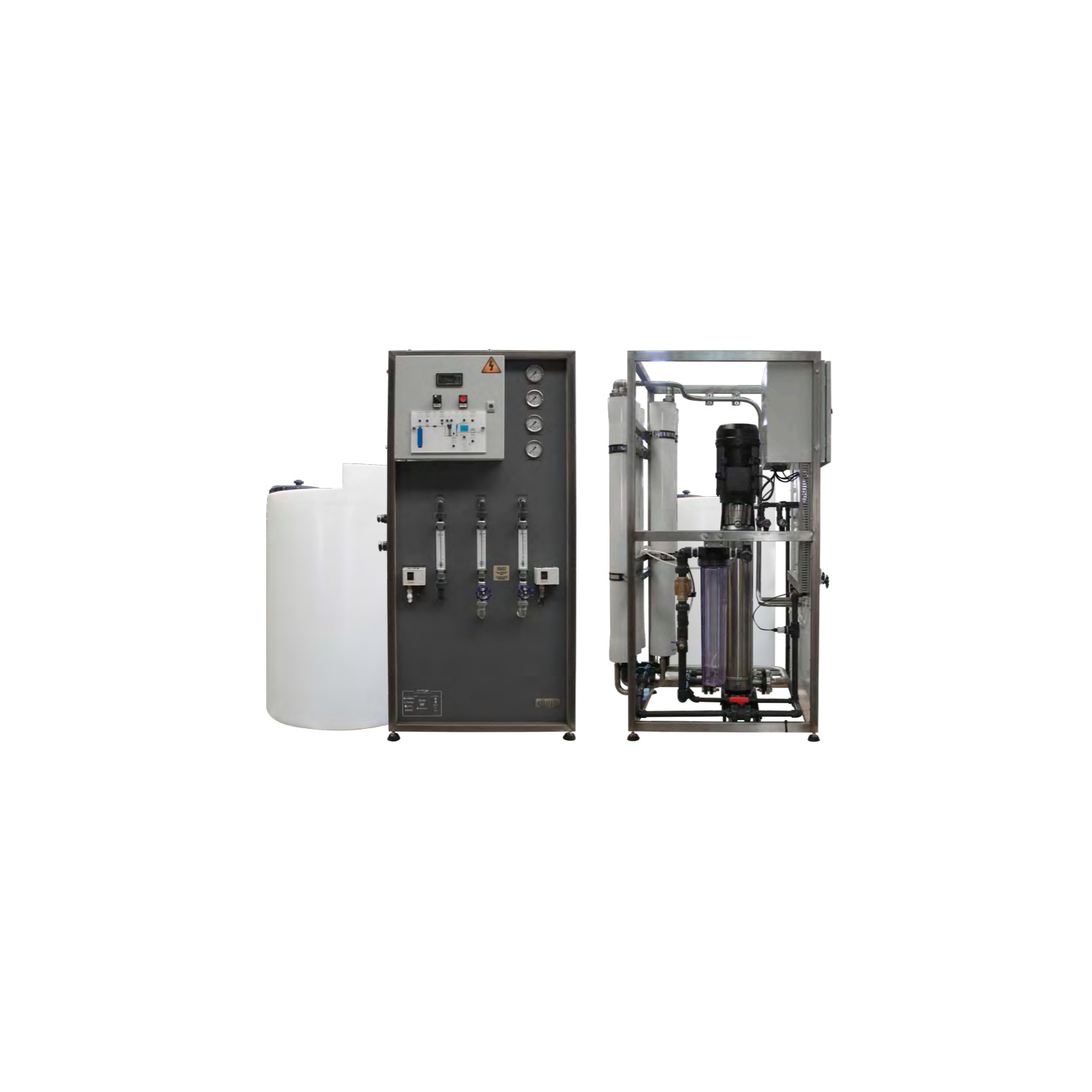

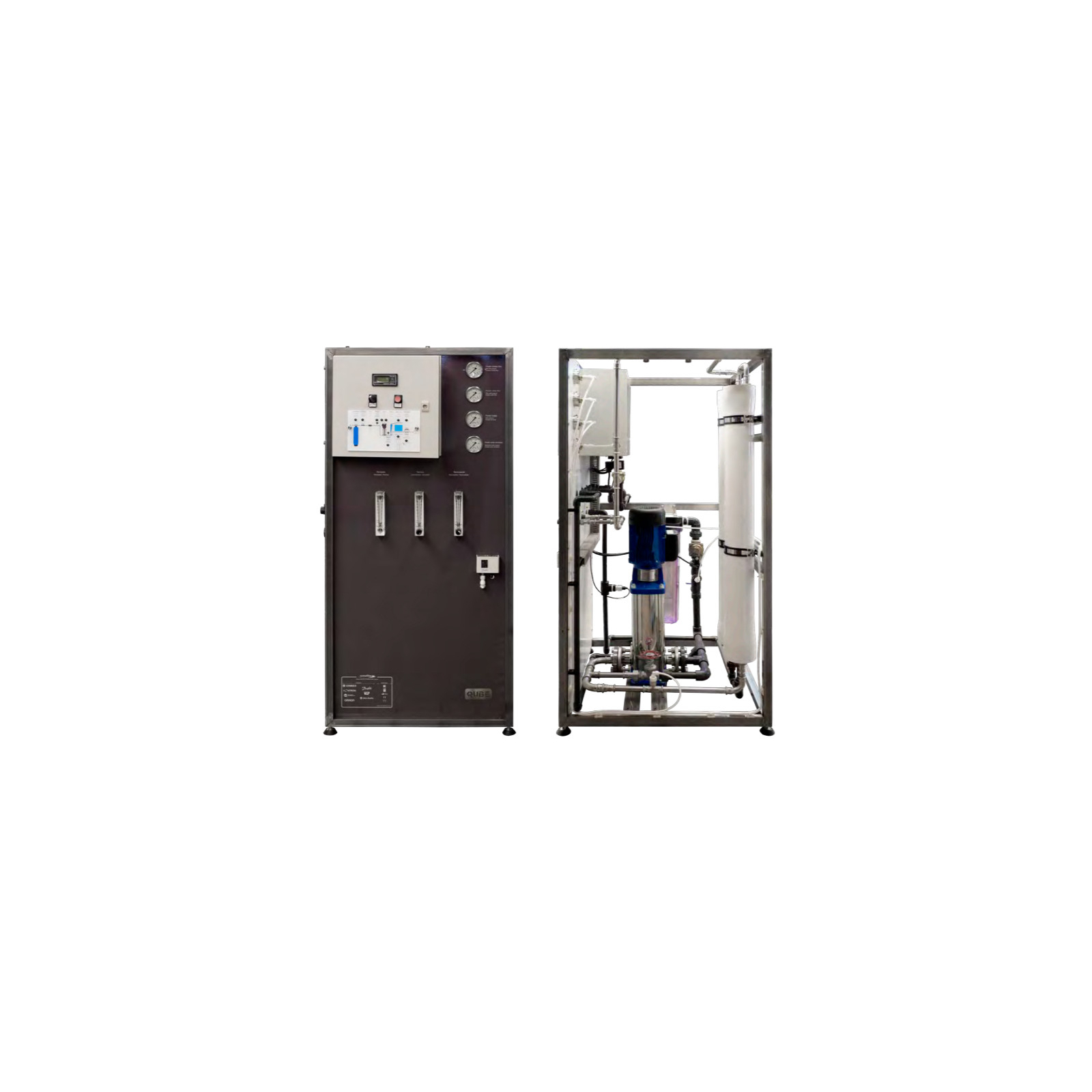

QUBE-V - Industrial RO System 200 to 1,000 l/h up to 10,000 ppm

  • | Available in 1 to 2 weeks
    • €6,600.00 HT

    1. Inlet TDS

    2. Membrane Capacity

    3. Chlorine Disinfection

    4. 25-Micron Pre-Filtration

    5. Free Chlorine Treatment

    6. Limescale Treatment

    7. Sand Filter

    Your configuration
      Your configuration total tax incl.

      Need advice, information or a quote?

      Contact us directly by phone or email.

      03 66 88 17 85 By email

      Monday to Friday, 9:30 am to 5 pm (French time). Standard-rate call.

      Josmose stands behind every RO system delivered.

      • Delivery in 24 to 48 h, free from €150 in mainland France.
      • Payment in 3 or 4 installments, interest-free.
      • Phone support 5 days a week, 9:30 am to 5 pm (French time), before and after your purchase.



      Quantity
      Available in 1 to 2 weeks

        Installation & Maintenance

        Installation

        Commissioning and documentation

        Documentation: the data sheets for each machine are available for download in the Documents section.

        Watch out for chlorides

        The standard 2,000 PPM and 6,000 PPM versions are designed for water containing no more than 500 mg/L of chlorides. Between 500 and 1,100 mg/L, the pump must be replaced with a 316 stainless steel model, at an extra cost of about €1,000 excl. VAT. A custom quote request is then required. Above 1,100 mg/L, you must choose the 10,000 PPM.

        Maintenance

        Recommended replacement intervals

        Filters and membranes must be replaced regularly to maintain the filtration performance of your system.

        Consumable Suggested interval Product
        10-micron PP filter Every 3 months
        For 24 hours a day use         		Discover
        Vontron 4040 membranes Every 2 years
        For 24 hours a day use         		Discover

        Other consumables: we also offer activated carbon, water softener resin, and 25-micron pre-filters on request by email.

        Warranty

        Manufacturer warranty and parts availability

        The manufacturer warranty is 2 years and covers the entire system under normal use of the equipment.

        After the warranty period expires, we also commit to making spare parts available to you at reasonable prices to make repairs easier and extend the life of your system.

        Specifications

        Technical Specifications

        Performance depends on water quality and the configuration chosen

        Specification Value
        Operating pressure 2,000 PPM : 6 to 12 bar
        6,000 PPM : 8 to 14 bar
        10,000 PPM : 12 to 22 bar
        Salt rejection ratio 99%
        Pressure gauge Glycerin-filled pressure gauge
        Flow meters Inlet and outlet flow meters
        Display Real-time display of filtered water conductivity
        Control panel Allen-Bradley digital control panel
        Pump Vertical pump, brand: Lowara (Grundfos optional)
        Frame Stainless steel frame
        Tubing PVC tubing
        Membrane recovery rate 2,000 PPM : 50 to 75 %
        6,000 PPM : 35 to 55 %
        10,000 PPM : 19 to 50 %
        % purified water Varies with TDS and configuration

        Key takeaway: the higher the concentration of dissolved salts in the feed water, the more the required operating pressure increases and the lower the membrane recovery rate can be. The RO system configuration must therefore be matched to the actual quality of the water to be treated.

        Available models

        Comparison of configurations by TDS and required flow rate

        Reference Maximum TDS Membranes Pump power Capacity Dimensions Weight Water softener reference Activated carbon filter reference Optional sand filter
        OI1500 2,000 PPM 1 × ULP11-4040 1 HP 200 L/h 70 × 75 × 150 cm 45 kg DT7301
        TWIN 2×20 L        		 C670100
        10 kg flint / 50 kg carbon        		 A670080
        60 kg flint / 21 kg anthracite
        635 € excl. VAT
        BW0300 6,000 PPM 2 × ULP21-4040 1.5 HP 300 L/h 70 × 75 × 150 cm 55 kg DT7301
        TWIN 2×20 L        		 C670100
        10 kg flint / 50 kg carbon        		 A670080
        60 kg flint / 21 kg anthracite
        635 € excl. VAT
        BW0300-2 10,000 PPM 2 × ULP31-4040 2.5 HP 300 L/h 70 × 75 × 150 cm 75 kg DT7301
        TWIN 2×20 L        		 C670100
        10 kg flint / 50 kg carbon        		 A670080
        60 kg flint / 21 kg anthracite
        635 € excl. VAT
        OI3000 2,000 PPM 2 × ULP11-4040 1 HP 400 L/h 70 × 75 × 150 cm 50 kg DT7301
        TWIN 2×20 L        		 C670100
        10 kg flint / 50 kg carbon        		 A670080
        60 kg flint / 21 kg anthracite
        635 € excl. VAT
        BW0500 6,000 PPM 3 × ULP21-4040 1.5 HP 500 L/h 70 × 75 × 150 cm 60 kg DT7302
        TWIN 2×30 L        		 C670100
        10 kg flint / 50 kg carbon        		 A670080
        60 kg flint / 21 kg anthracite
        635 € excl. VAT
        BW0500-2 10,000 PPM 3 × ULP31-4040 2.5 HP 450 L/h 70 × 75 × 150 cm 80 kg DT7302
        TWIN 2×30 L        		 C670100
        10 kg flint / 50 kg carbon        		 A670080
        60 kg flint / 21 kg anthracite
        635 € excl. VAT
        OI4500 2,000 PPM 3 × ULP11-4040 1 HP 600 L/h 70 × 75 × 150 cm 55 kg DT7302
        TWIN 2×30 L        		 C670100
        10 kg flint / 50 kg carbon        		 A670080
        60 kg flint / 21 kg anthracite
        635 € excl. VAT
        BW0600 6,000 PPM 4 × ULP21-4040 2.25 HP 600 L/h 70 × 75 × 150 cm 65 kg DT7303
        TWIN 2×40 L        		 C74170
        25 kg flint / 75 kg carbon        		 A670130
        100 kg flint / 39 kg anthracite
        892 € excl. VAT
        BW0600-2 10,000 PPM 4 × ULP31-4040 3.3 HP 600 L/h 70 × 75 × 150 cm 85 kg DT7303
        TWIN 2×40 L        		 C74170
        25 kg flint / 75 kg carbon        		 A670130
        100 kg flint / 39 kg anthracite
        892 € excl. VAT
        OI6000 2,000 PPM 4 × ULP11-4040 1.75 HP 800 L/h 70 × 90 × 150 cm 60 kg DT7303
        TWIN 2×40 L        		 C74170
        25 kg flint / 75 kg carbon        		 A670130
        100 kg flint / 39 kg anthracite
        892 € excl. VAT
        BW0750 6,000 PPM 5 × ULP21-4040 2.25 HP 750 L/h 70 × 90 × 150 cm 70 kg DT7304
        TWIN 2×50 L        		 C74170
        25 kg flint / 75 kg carbon        		 A670130
        100 kg flint / 39 kg anthracite
        892 € excl. VAT
        BW0750-2 10,000 PPM 5 × ULP31-4040 3.3 HP 750 L/h 70 × 90 × 150 cm 90 kg DT7304
        TWIN 2×50 L        		 C74170
        25 kg flint / 75 kg carbon        		 A670130
        100 kg flint / 39 kg anthracite
        892 € excl. VAT
        OI7500 2,000 PPM 5 × ULP11-4040 1.75 HP 1,000 L/h 70 × 90 × 150 cm 65 kg DT7304
        TWIN 2×50 L        		 C74170
        25 kg flint / 75 kg carbon        		 A670130
        100 kg flint / 39 kg anthracite
        892 € excl. VAT
        BW1000 6,000 PPM 6 × ULP21-4040 2.25 HP 1,000 L/h 70 × 90 × 150 cm 75 kg DT7305
        TWIN 2×75 L        		 C74170
        25 kg flint / 75 kg carbon        		 A670130
        100 kg flint / 39 kg anthracite
        892 € excl. VAT
        BW1000-2 10,000 PPM 6 × ULP31-4040 3.3 HP 900 L/h 70 × 90 × 150 cm 100 kg DT7305
        TWIN 2×75 L        		 C74170
        25 kg flint / 75 kg carbon        		 A670130
        100 kg flint / 39 kg anthracite
        892 € excl. VAT

        Documents

        Documents and downloads

        Technical documentation by RO system configuration

        Assembly sheet

        See the main assembly and connection instructions for the industrial RO system.

        Download the assembly sheet

        Data sheets

        Choose the documentation that matches your TDS

        Up to 2,000 PPM

        200 to 1,000 L/h

        Data sheet for industrial RO system configurations operating up to 2,000 PPM.

        Download the data sheet

        Up to 6,000 PPM

        300 to 1,000 L/h

        Data sheet for industrial RO system configurations operating up to 6,000 PPM.

        Download the data sheet

        Up to 10,000 PPM

        300 to 900 L/h

        Data sheet for industrial RO system configurations operating up to 10,000 PPM.

        Download the data sheet

        Installation and maintenance manual

        Find the information you need to install, commission, use and maintain the industrial RO systems in this range.

        Download the installation and maintenance manual
