Industrial Filters with FVN Pneumatic Valve Assembly
Industrial RO Systems
⚠️ Custom-made product — Right of withdrawal does not apply
This product is manufactured or configured to your specifications. Under Article L221-28 of the French Consumer Code, the right of withdrawal does not apply to goods made to the consumer’s specifications or clearly personalized.
Before placing your order, please check that this product meets your needs. Our team is available to advise you at 03 66 88 17 85.
This product is manufactured or configured to your specifications. Under Article L221-28 of the French Consumer Code, the right of withdrawal does not apply to goods made to the consumer’s specifications or clearly personalized.
Before placing your order, please check that this product meets your needs. Our team is available to advise you at 03 66 88 17 85.

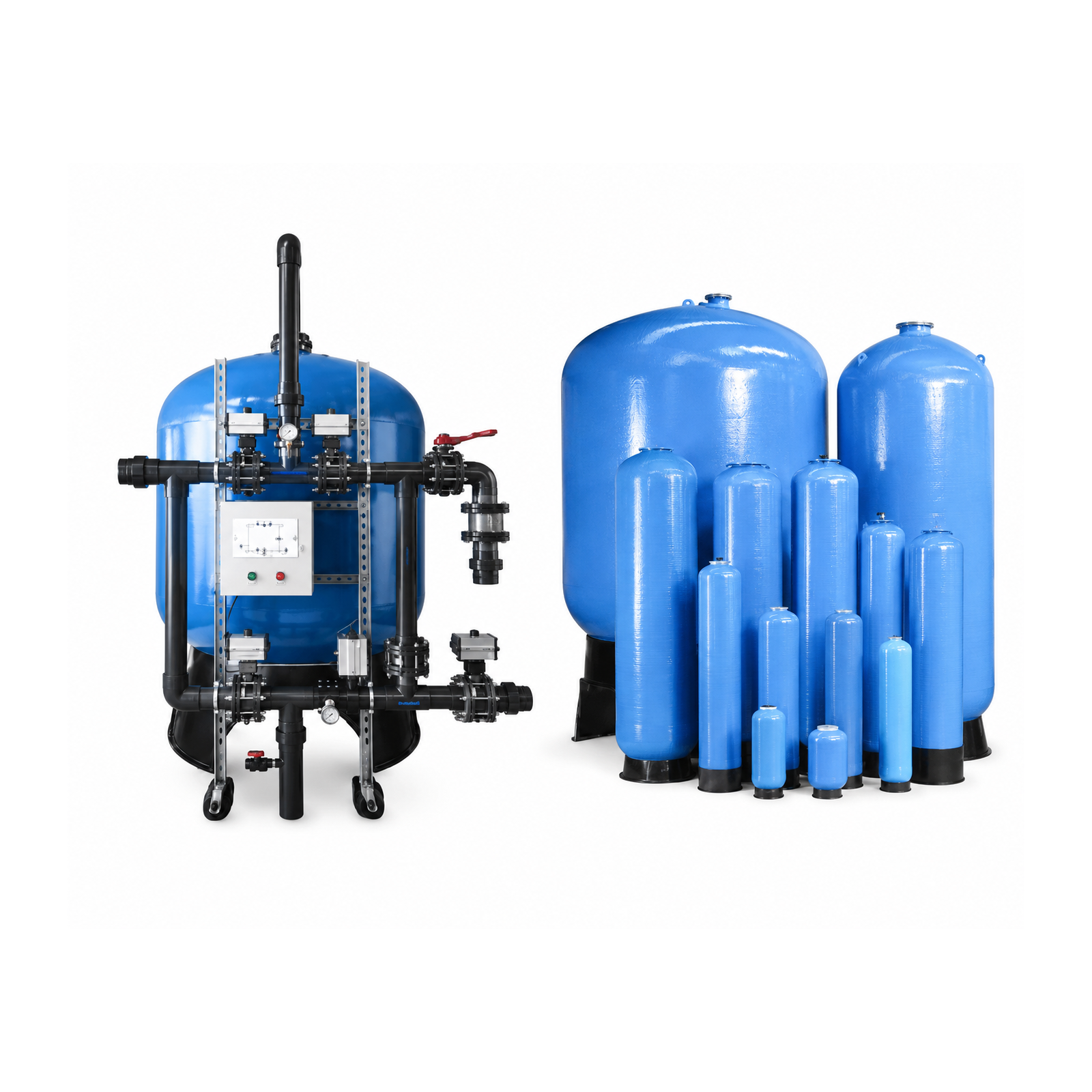

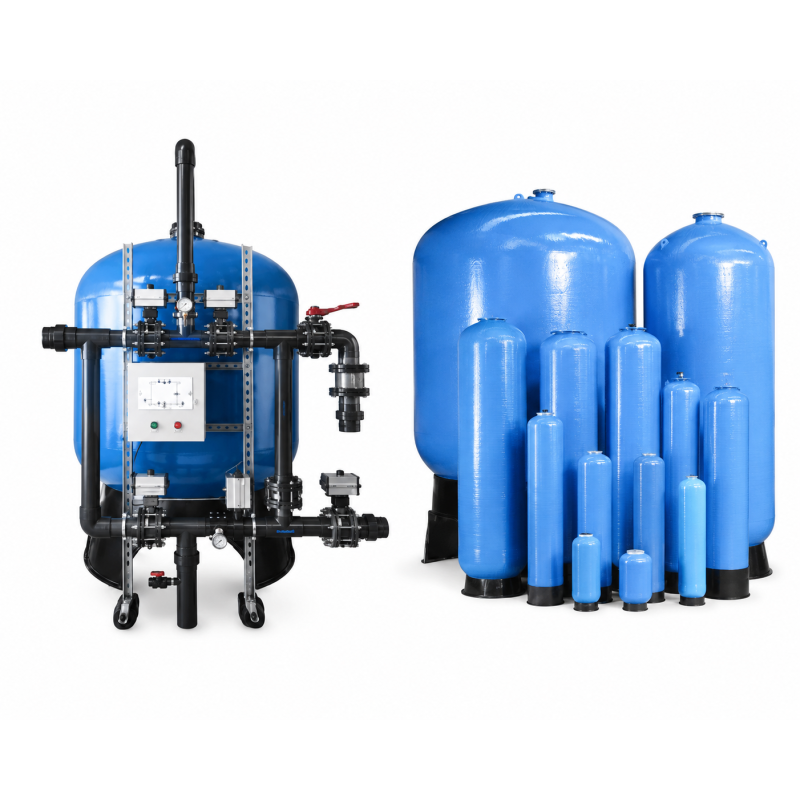

Industrial filters with pneumatic valve assembly
These industrial filters are designed for water treatment installations requiring reliable, automated pretreatment. They can be used for different filtration stages: iron / manganese removal, softening / decalcification or dechlorination with activated carbon.
Each filter is equipped with a pneumatic valve assembly to automate service and backwash cycles. The filters operate in parallel depending on the installation configuration.
General components
- FRP tank with filter strainers
- FVN90 or FVN110 pneumatic valve assembly depending on the model
- 5 stainless steel butterfly valves with flanged connections
- Single-acting pneumatic actuators
- Electrical control panel with Siemens Logo! PLC
- PVC piping
- AISI 304 stainless steel support frame
- Vent valve
- Inlet and outlet pressure gauges
Available models
| Version | Application | Tank | Volume | Max flow rate | Valve assembly | Connection |
|---|---|---|---|---|---|---|
| 63x86 — FVN90 | Iron / manganese removal | Ø 1,620 mm — H 2,400 mm | 3,150 L | 15.33 m³/h | FVN90 | 3" |
| 63x70 — FVN90 | Softening / decalcification | Ø 1,620 mm — H 2,400 mm | 2,580 L | 30 m³/h | FVN90 | 3" |
| 63x86 — FVN110 | Activated carbon / dechlorination | Ø 1,620 mm — H 2,400 mm | 3,150 L | 30 m³/h | FVN110 | 4" |
Differences between versions
Version 63x86 — FVN90 — 3"
This version is used for iron / manganese removal. It features a 3,150 L tank and a maximum flow rate per unit of 15.33 m³/h. It is suitable for heavy filter media such as pyrolusite, flint and gravel.
Version 63x70 — FVN90 — 3"
This version is used for softening / decalcification. It features a more compact 2,580 L tank, with a maximum flow rate per unit of 30 m³/h. It is suitable for applications using cation exchange softening resin.
Version 63x86 — FVN110 — 4"
This version is used for activated carbon filtration / dechlorination. It uses the same 3,150 L tank, but with an FVN110 pneumatic valve assembly and a 4" connection, allowing a maximum flow rate per unit of 30 m³/h.
Main applications
- Iron removal from water
- Manganese removal
- Softening / decalcification
- Activated carbon filtration
- Dechlorination before reverse osmosis
- Industrial water pretreatment
Important information
- The filters operate in parallel depending on the installation configuration.
- Filter media are not included with the filter alone.
- The compressor is not included unless otherwise specified in the quote.
- Specifications may vary depending on the final project configuration.
