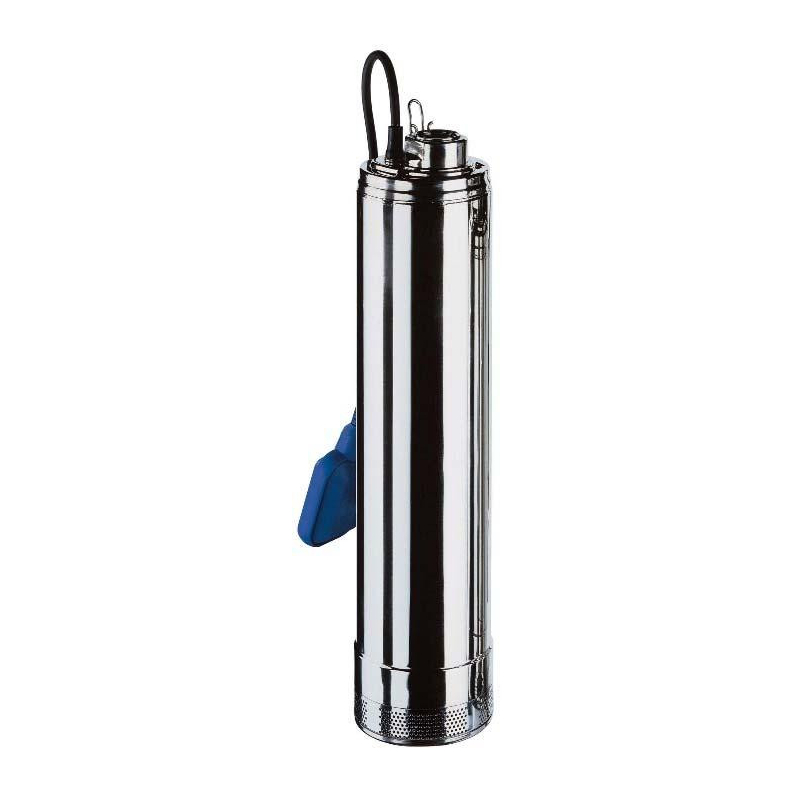

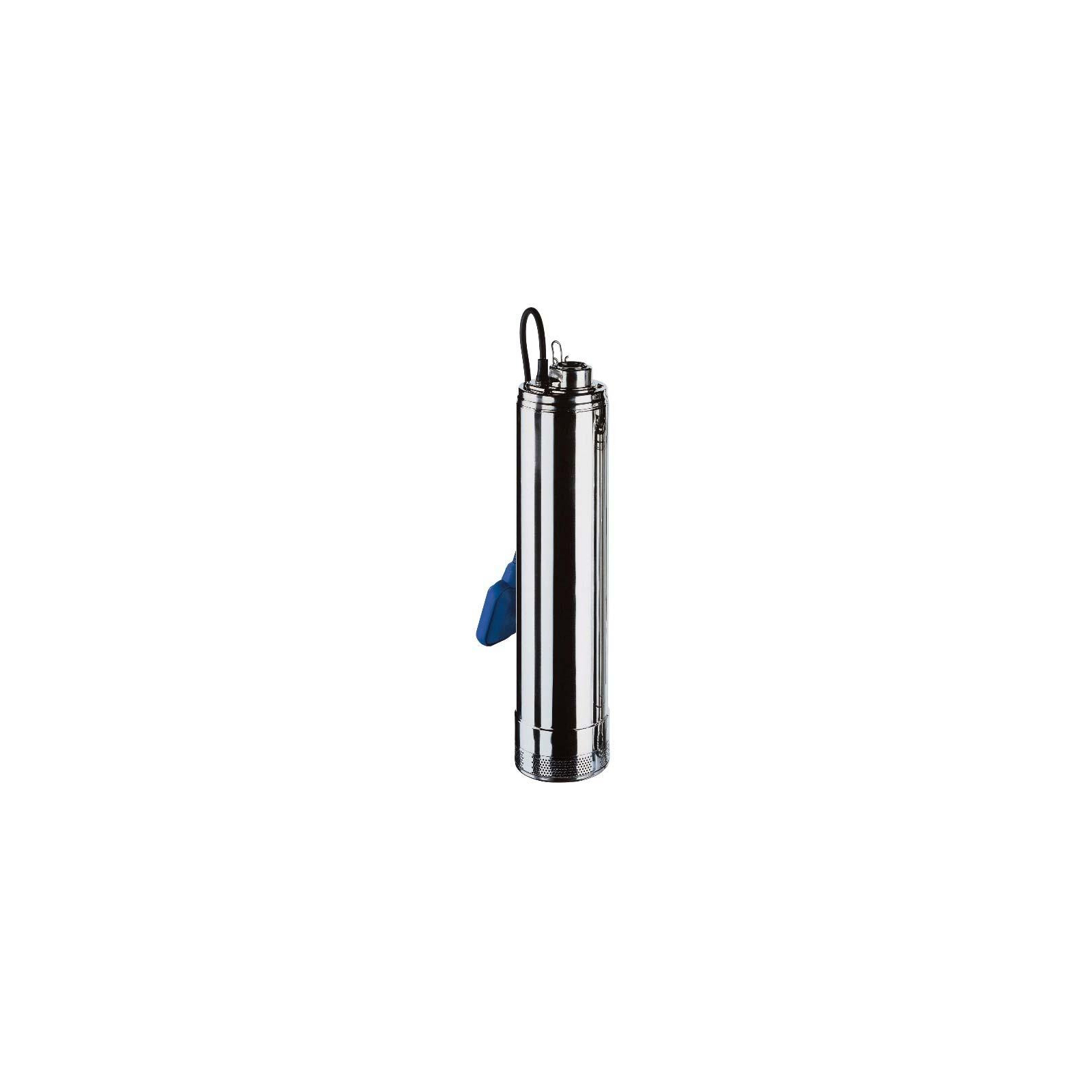

High-Flow Submersible Pump
Pumps
Warning: This pump is not suitable for RO water
Description:
5" multistage submersible centrifugal electric pump, made of AISI 304 stainless
steel and Noryl.
Suitable for supplying clean water from wells, tanks, irrigation systems,
vehicle washing and, in general, all types of water pressurization
needs.
The double mechanical seal in the oil chamber ensures a long
service life and improves reliability. Supplied with 20 m of power cable.
Specifications:
- Asynchronous motor, cooled by the pumped liquid itself.
- Class F insulation
- IP 68 protection
- 220 V ± 10% 50 Hz
- Built-in capacitor and thermal overcurrent protection with automatic
reset
- Discharge Ø 1 "¼

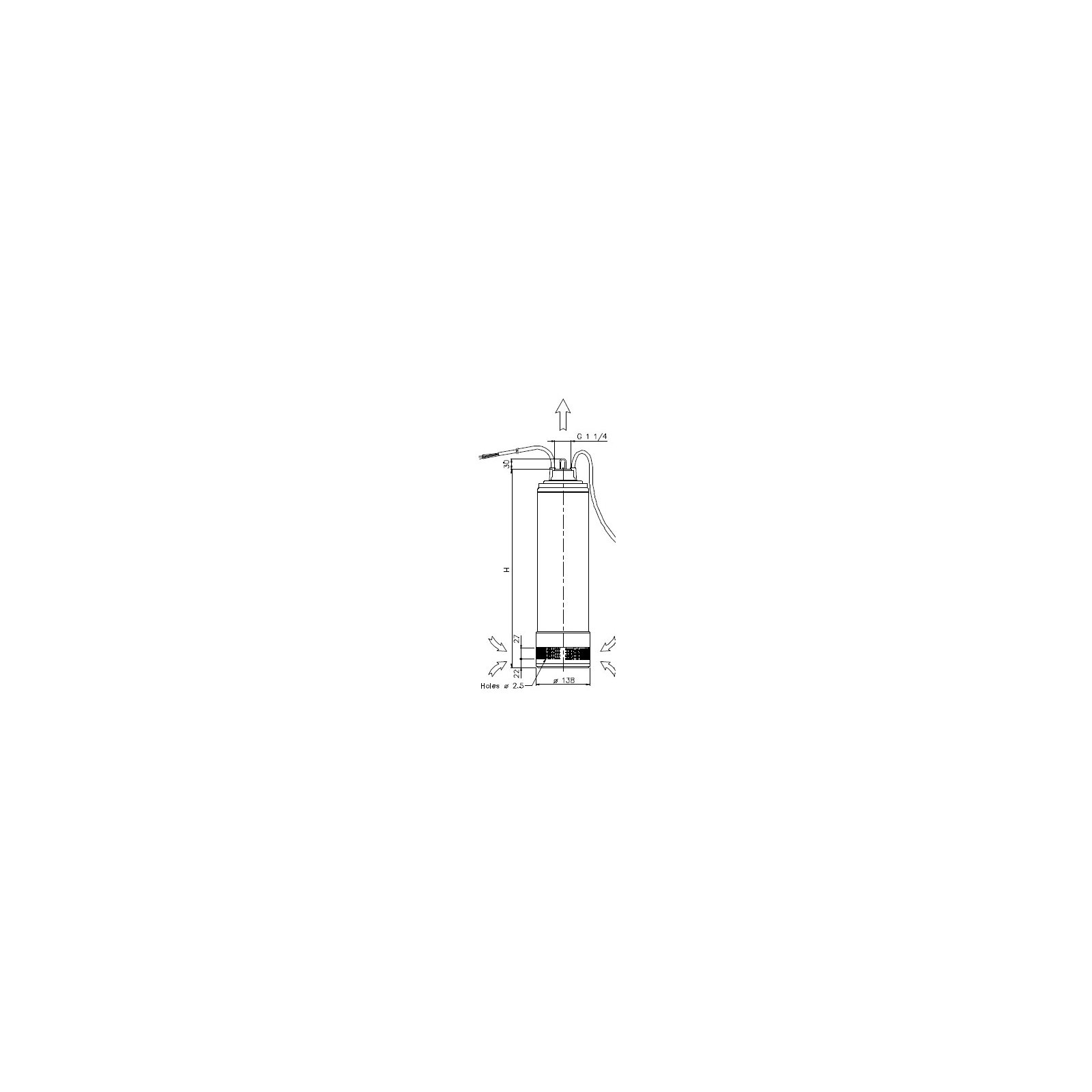

Dimensions:
- Maximum immersion: 20 m
- Maximum pumped liquid temperature: 40ºC
- Vertical or horizontal operation
- Maximum solids content: 50 ppm
- Maximum working pressure: 10 bar
| Standard pump | High-volume pump | |
| Maximum flow rate (l/h) | 4,800 | 4,800 |
| Total head = maximum pumping head | 33.1 | 54.1 |
| Power (kW/HP) | 0.45/0.6 | 0.75/1.0 |
| Weight (Kg) | 13 | 16 |
| Height (mm) | 513 | 530 |
| Total head m.c.a | Flow rate (l/min) | |||||
| 0 | 20 | 30 | 40 | 60 | 80 | |
| Standard pump | 40 | 33.1 | 30.8 | 27.8 | 20 | 10.3 |
| High-volume pump | 60 | 54.1 | 50.2 | 45.4 | 32.6 | 16.8 |
