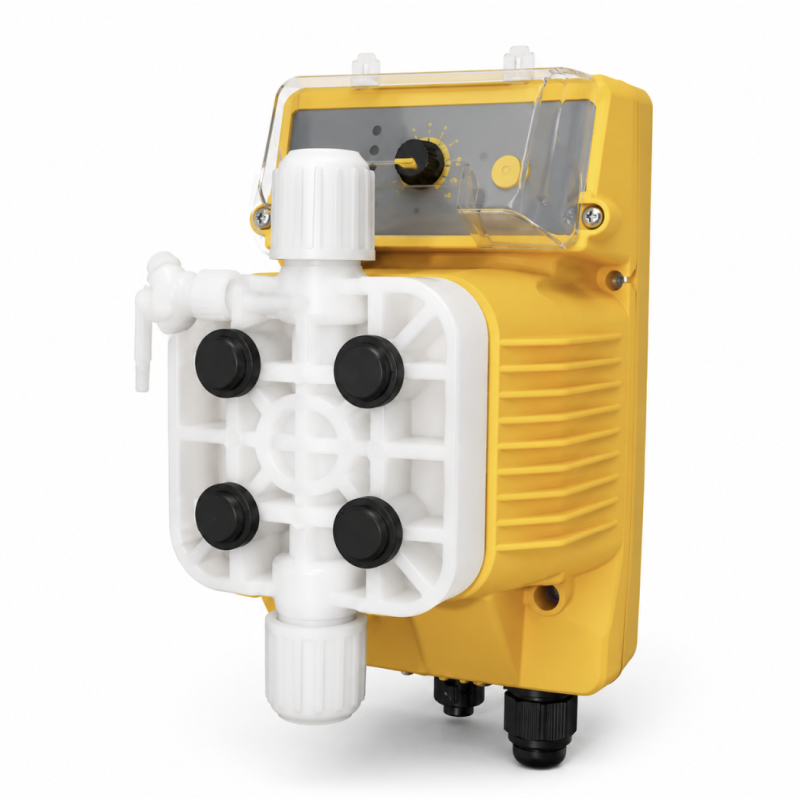

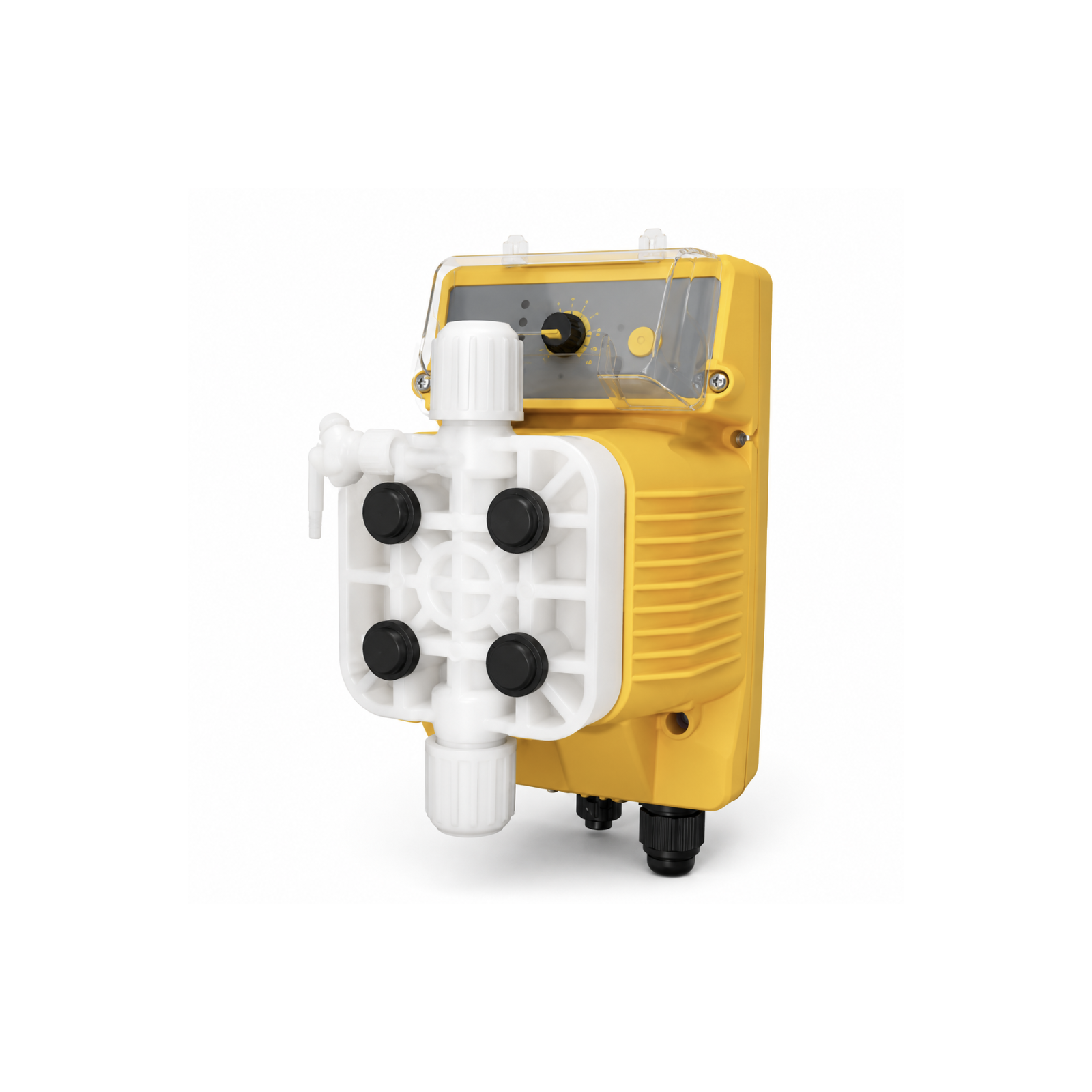

Athena AT-AM BD2004 Analog Metering Pump
Pumps
Athena Analog Metering Pump Overview
This pump includes an injection valve, injection tubing, a foot valve, and a manual priming valve.
It is sold with a water meter, the probe, and its mounting bracket.
Using this metering pump requires regular checks of the parameters (chlorine level, hardness, or pH) to avoid overdosing or underdosing the chemical and thereby damaging equipment downstream of the pump.
Athena Analog Metering Pump Technical Specifications
- Dual manual flow adjustment from 0-20% or 0-100%
- Quick connection
- Power supply: 100/240V AC with quick-connect coupling
- Manual bleed valve as standard
- PVDF head with VITON seals
- ZENNER cold water meter
- Probe and pump bracket included
Dosing and Power Supply
| Output | 3 L/h | 4 L/h | 5 L/h | 8 L/h |
| Pressure | 12 bar | 10 bar | 8 bar | 2 bar |
| Torque | 0.31 | 0.42 | 0.52 | 0.83 |
| Connection | 4 x 6 | 4 x 6 | 4 x 6 | 4 x 6 |
| Revolutions/Torque per Minute | 160 | 160 | 160 | 160 |
| Power | 14 W | 14 W | 14 W | 14 W |
| Weight | 3 Kg | 3 Kg | 3 Kg | 3 Kg |
Control Panel Explanation
|
1. Selection button 2. Operating mode LED (1:1 / 4:1 / 1:N) 3. Operating LED (in mA) - Dosing and power supply 4. FINA control button 5. Quick-connect power supply 6. Level probe connection 7. External connections |
 |
https://www.josmose.fr/en/ro-system/ro-system-accessories/ro-pump/athena-at-am-bd2004-metering-pump
508
Athena AT-AM BD2004 Analog Metering Pump
<p>This metering pump dispenses a chemical at regular intervals for various applications, such as dosing chlorine <a href="/en/ro-system/ro-consumables/industrial-chemicals/sodium-hypochlorite-15-25-liters?search_query=hypochlorite+de+sodium&results=49" target="_blank">(sodium hypochlorite)</a> to neutralize bacteria and viruses in water.</p>
<p>We sell it as a kit with the mounting bracket, probe, and a ZENNER cold water meter.</p>
