Turbidex Sand Filter
Industrial Accessories
⚠️ Custom product — Right of withdrawal does not apply
This product is manufactured or configured to your specifications. Under Article L221-28 of the French Consumer Code, the right of withdrawal does not apply to goods made to the consumer's specifications or clearly personalized.
Before placing your order, please check that this product meets your needs. Our team is available to advise you at 03 66 88 17 85.
This product is manufactured or configured to your specifications. Under Article L221-28 of the French Consumer Code, the right of withdrawal does not apply to goods made to the consumer's specifications or clearly personalized.
Before placing your order, please check that this product meets your needs. Our team is available to advise you at 03 66 88 17 85.
Overview
Suspended solids (SS) filtration
Turbidex filters are designed to capture suspended particles in water. Their effectiveness depends in particular on the incoming water quality, suspended solids load, filtration velocity, and filter sizing.
For water with a high solids load or specific characteristics, we recommend determining the amount of SS and the types of particles present before choosing your model.
A water analysis helps determine the most suitable configuration and filter media more precisely.

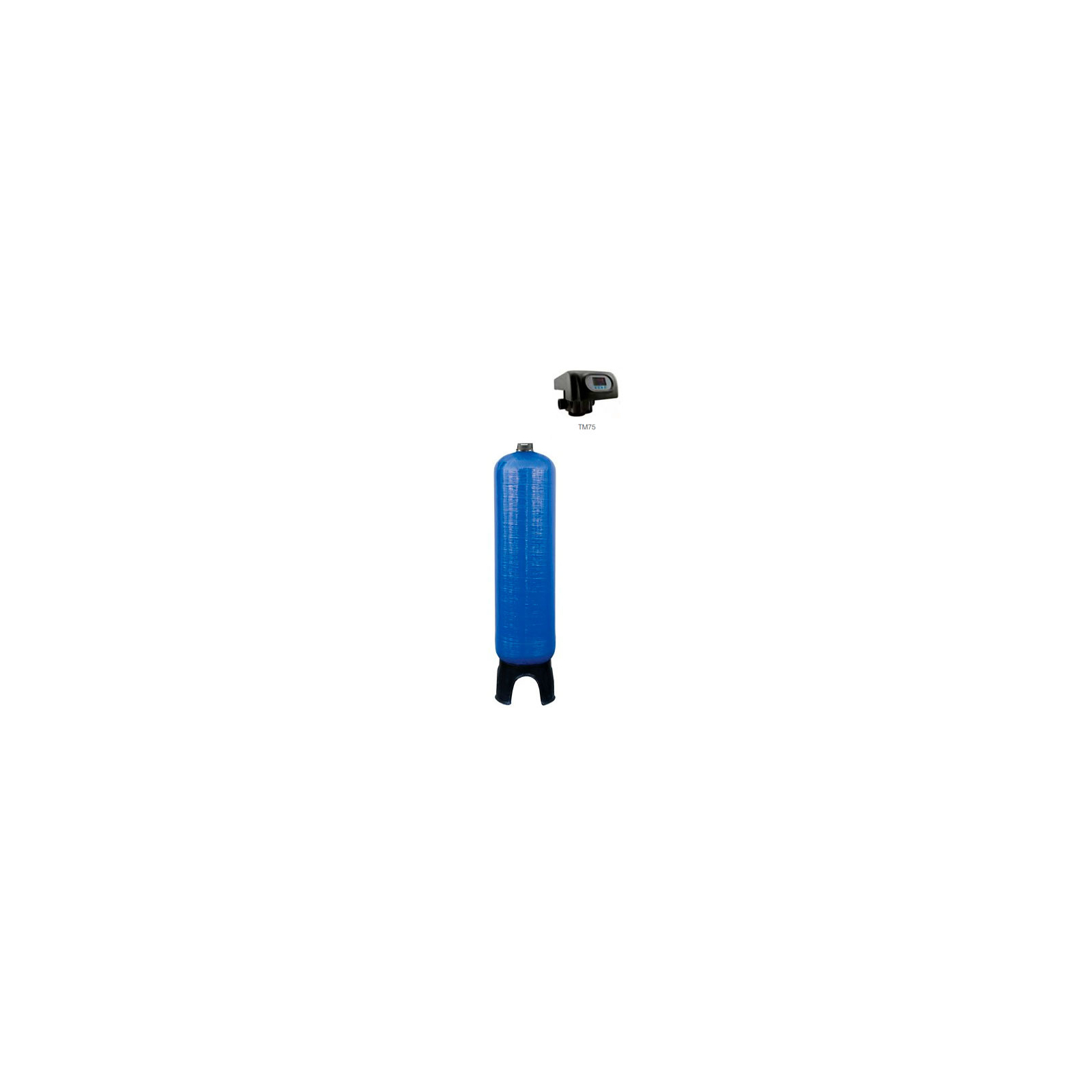

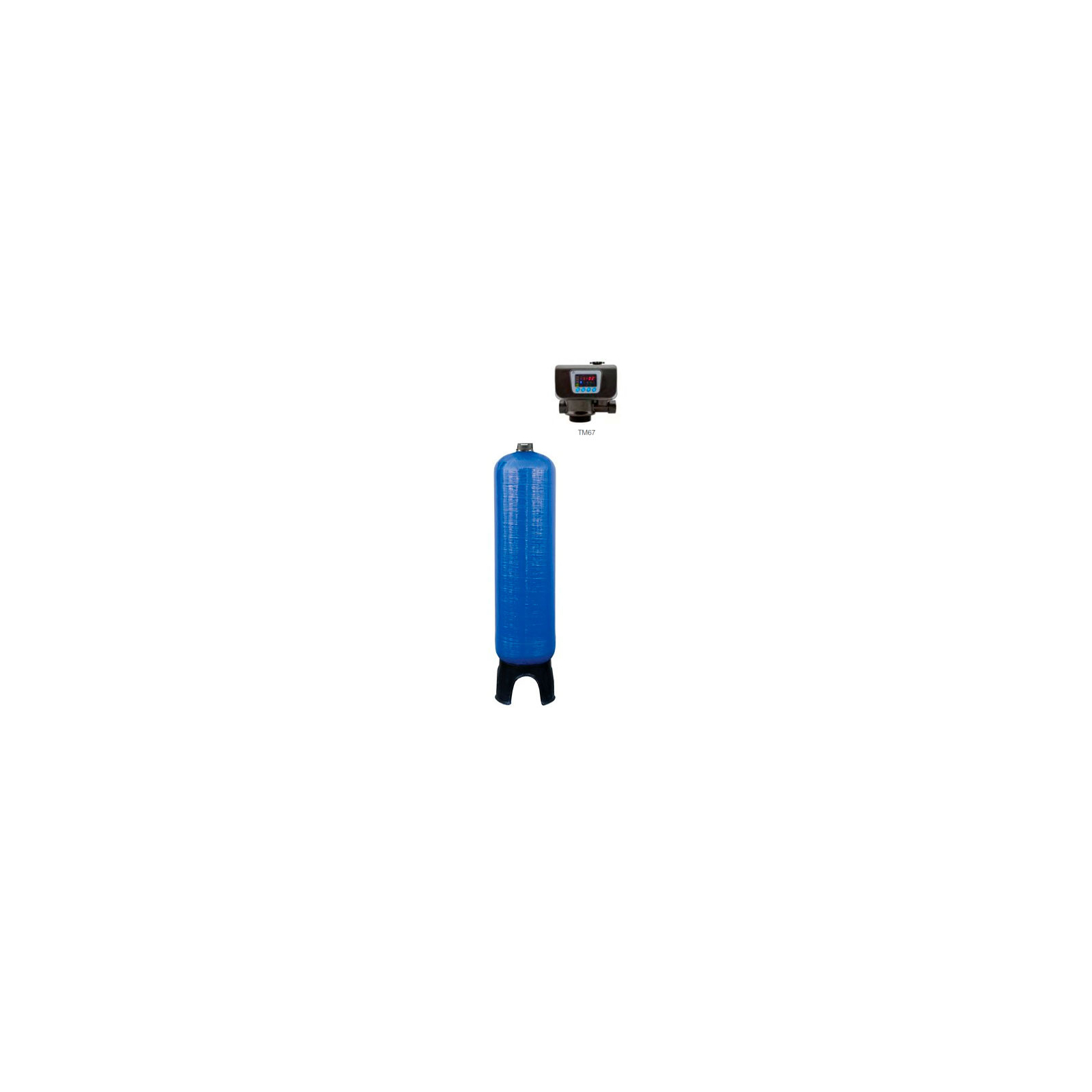

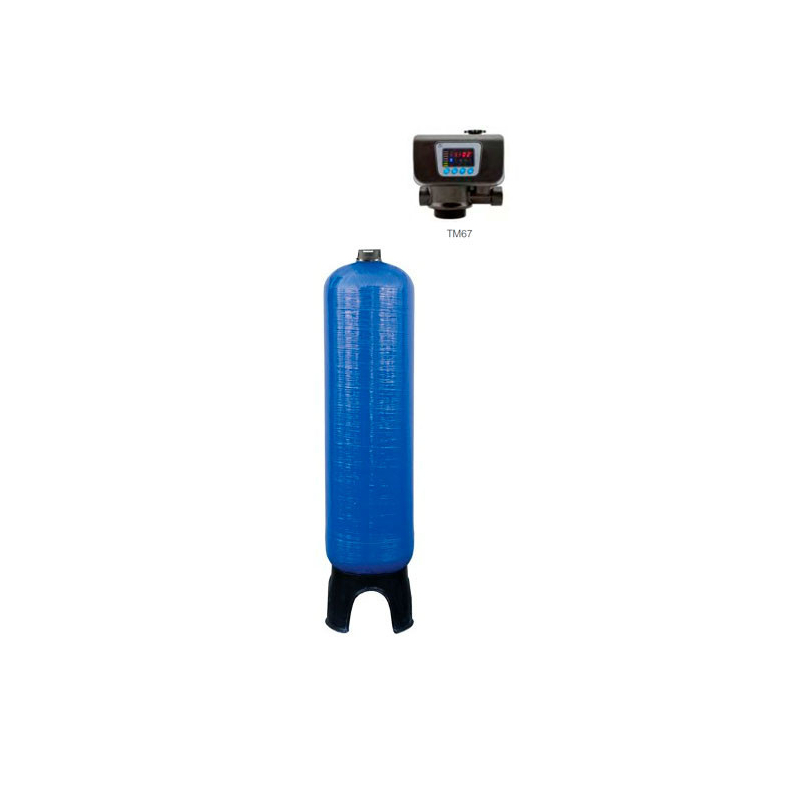

Models CT67001 to CT67005
・Valve model: TM67
・Tank: made of fiberglass-reinforced polyester
・Special filters for removing suspended particles.
・Turbidex and gravel filter media, with the option to add other materials.
・Working pressure range: 3 to 6 bars
・Made of Noryl
・1” connection
・Working pressure range: 2 to 6 bar
・Operating temperature range: 4 ºC to 40 ºC.
・Power supply: 230 V-12 V. 50 Hz.
・Continuous flow (1 Bar pressure drop): 4 m3 / h.
Models CT75001 to 75003
・Valve model: TM75
・Made of Noryl
・2” connection
・Working pressure range: 3 to 6 bars
・Operating temperature range: 4 ºC to 40 ºC.
・Power supply: 230 V-12 V. 50 Hz.
・Continuous flow (1 Bar pressure drop): 10 m3 / h.
・Shuts off water during regeneration
Maintenance and backwashing
The filter media does not need regular replacement. Particles captured in the filter are flushed out through backwashing.
Automatic backwashing
The filters are equipped with an automatic timer-controlled valve. Backwash cycles can be programmed to suit your operating conditions: daily, every other day, once a week, etc.
Backwash frequency depends primarily on the incoming water quality, the amount of suspended solids, and the level of filter fouling.
The filter media is replaced only after several years of operation, when wear or a loss of performance is observed. Its service life therefore depends directly on operating conditions and water quality.
Installation and connections
Filter sizing depends on your desired flow rate and the quality of the water to be treated.
- An inlet for the water to be treated
- A filtered water outlet
- A drain for backwash water
- A power supply for the automatic valve
- A connection suited to your model: 1" on TM67 models and 2" on TM75 models
How do you choose your Turbidex filter?
To determine the right model for your installation, it helps to know:
- The flow rate of the water to be treated
- The amount of suspended solids (SS)
- The types of particles present
- The overall incoming water quality
For professional or industrial applications, or water with a high solids load, we recommend sending us a water analysis along with your desired flow rate so we can check the system sizing.
Comparison table
| Model | CT67001 | CT67002 | CT67003 | CT67004 | CT67005 | CT75001 | CT75002 | CT75003 |
| Media volume | 14L | 28L | 42L | 56L | 84L | 112L | 140L | 196L |
| Valve | TM67 | TM67 | TM67 | TM67 | TM67 | TM75 | TM75 | TM75 |
| Backwash flow rate | 1.22m3/h | 1.93m3/h | 2.74m3/h | 3.26m3/h | 3.98m3/h | 4.91m3/h | 7.01m3/h | 8.95m3/h |
| Max. flow rate | 0.96m3/h | 1.52m3/h | 2.15m3/h | 2.56m3/h | 3.05m3/h | 3.85m3/h | 5.49m3/h | 7.02m3/h |
| Max. valve flow rate | 4m3/h | 4m3/h | 4m3/h | 4m3/hh | 4m3/h | 10m3/h | 10m3/h | 10m3/h |
| type | 8x35 | 10x44 | 12x48 | 13x54 | 14x65 | 16x65 | 18x65 | 21x62 |
| Height | 1,074mm | 1,298mm | 1,421mm | 1,575mm | 1,851mm | 1,882mm | 1,985mm | 1,984mm |
| Width | 215mm | 268mm | 315mm | 349mm | 366mm | 411mm | 491mm | 555mm |
