Flow Meter with Inline Connection
Industrial Accessories
⚠️ Custom-made product — Right of withdrawal does not apply
This product is made or configured to your specifications. Under Article L221-28 of the French Consumer Code, the right of withdrawal does not apply to goods made to the consumer’s specifications or clearly personalized.
Before placing your order, please check that this product meets your needs. Our team is available to advise you at 03 66 88 17 85.
This product is made or configured to your specifications. Under Article L221-28 of the French Consumer Code, the right of withdrawal does not apply to goods made to the consumer’s specifications or clearly personalized.
Before placing your order, please check that this product meets your needs. Our team is available to advise you at 03 66 88 17 85.
Flow meter technical specifications and options

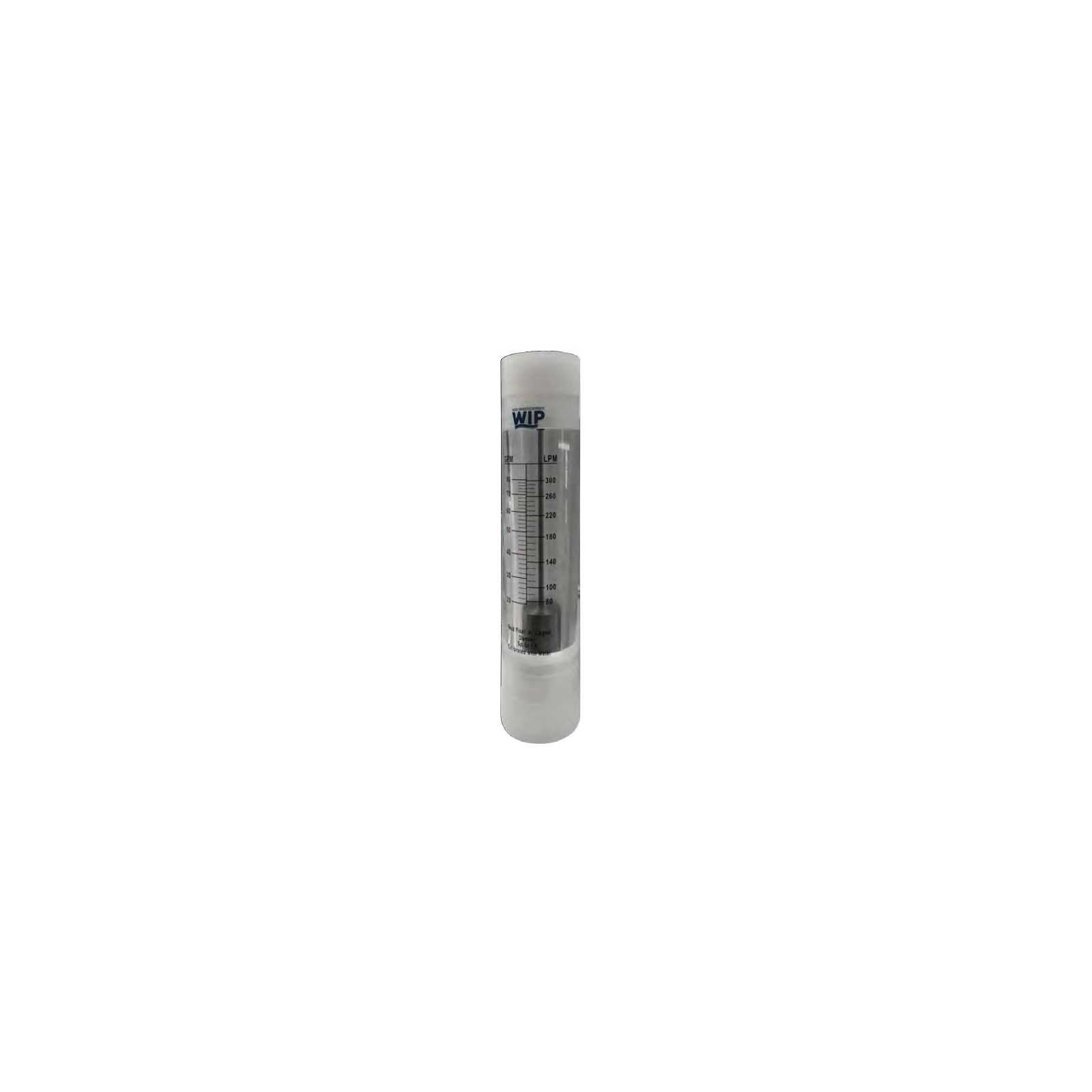

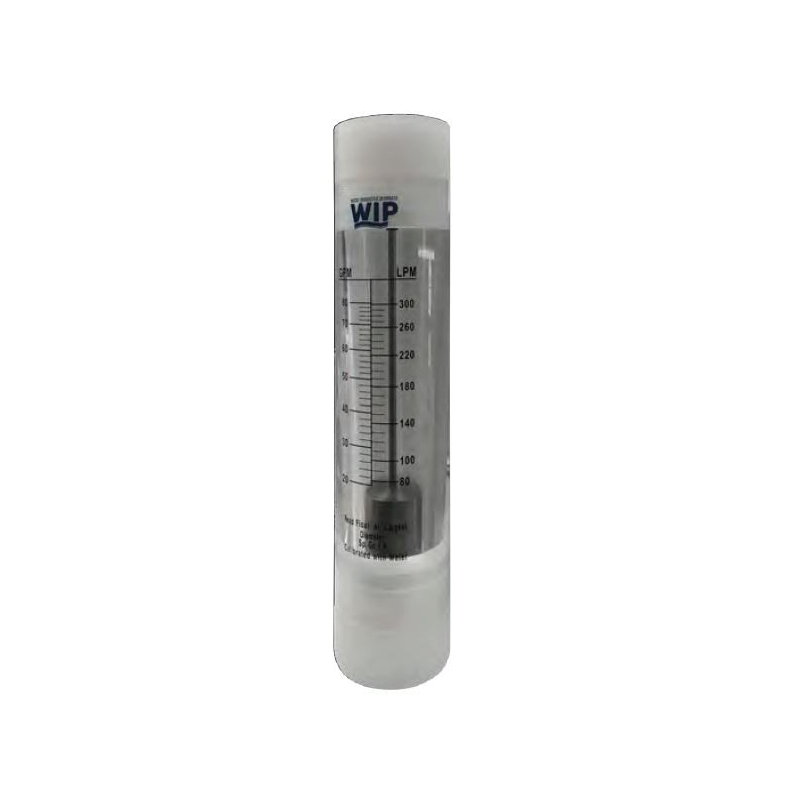

This WIP acrylic flow meter features ABS plastic fittings, silicone O-rings, and a stainless steel float. It connects in a straight line to prevent pressure loss.
With a maximum pressure rating of 10 bar, its measurement capacity ranges from 220 l/h to 18,000 l/h depending on the model.
This flow meter is available in several flow rate options to meet your needs and fit your equipment.

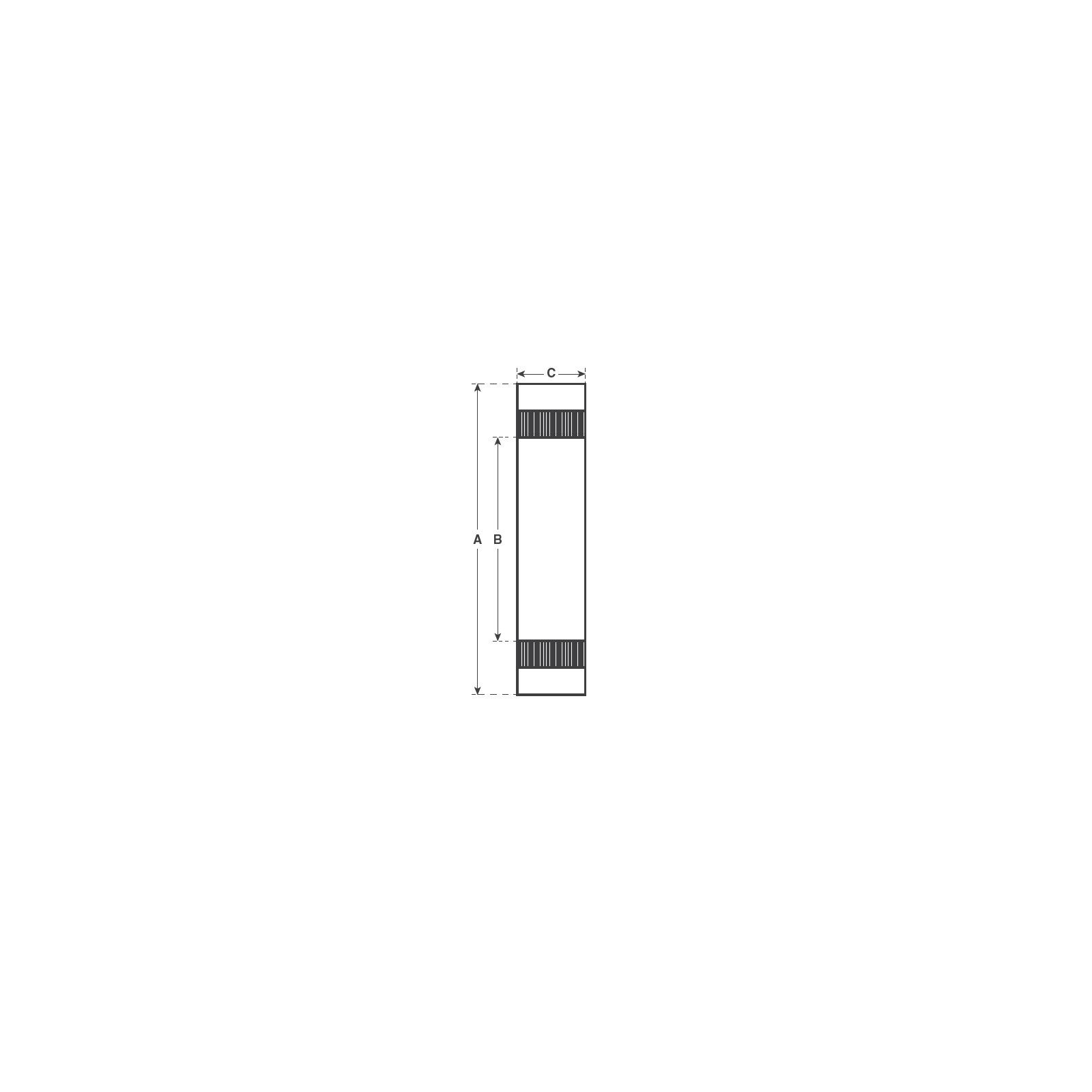

| Reference | Description Flow Rate |
Fitting Connection |
A |
B (mm) |
C (mm) |
| BA1084 |
Up to 220 l/h - 1 GPM - 3.8 LPM |
H½" BSP | 210 mm | 180 mm | 32 mm |
| BA1085 |
Up to 450 l/h - 2 GPM - 7.5 LPM |
H½" BSP | 210 mm | 180 mm | 32 mm |
| BA1086 |
Up to 1,100 l/h - 5 GPM - 19 LPM |
H½" BSP | 210 mm | 180 mm | 32 mm |
| BA1080 |
Up to 2,200 l/h - 10 GPM - 38 LPM |
M1" BSPT | 265 mm | 235 mm | 51 mm |
| BA1081 |
Up to 3,600 l/h - 16 GPM - 60 LPM |
M1" BSPT | 265 mm | 235 mm | 51 mm |
| BA1082 |
Up to 4,500 l/h - 20 GPM - 75 LPM |
M1" BSPT | 265 mm | 235 mm | 51 mm |
| BA1083 |
Up to 7,900 l/h - 35 GPM - 130 LPM |
M1" BSPT | 265 mm | 235 mm | 51 mm |
| BA1090 |
Up to 11,300 l/h - 45 GPM - 170 LPM |
M1" BSPT | 265 mm | 235 mm | 51 mm |
| BA1091 |
Up to 13,600 l/h - 60 GPM - 220 LPM |
M1" BSPT | 265 mm | 235 mm | 51 mm |
| BA1092 |
Up to 18,000 l/h - 80 GPM - 300 LPM |
H2" BSP | 265 mm | 235 mm | 51 mm |
 |
 |
