Cintropur Pre-Filters for Professional Systems

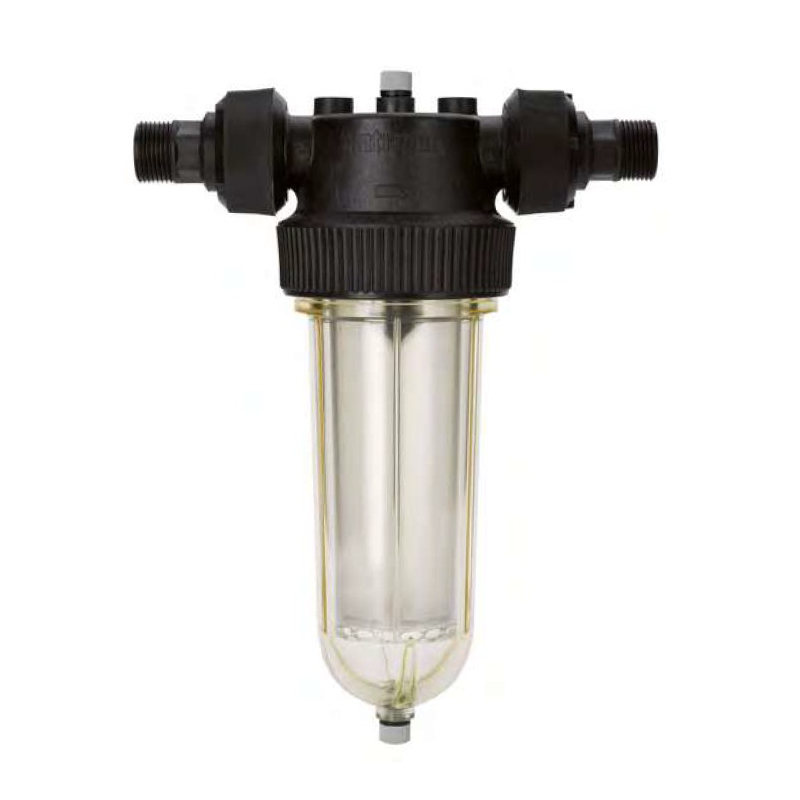

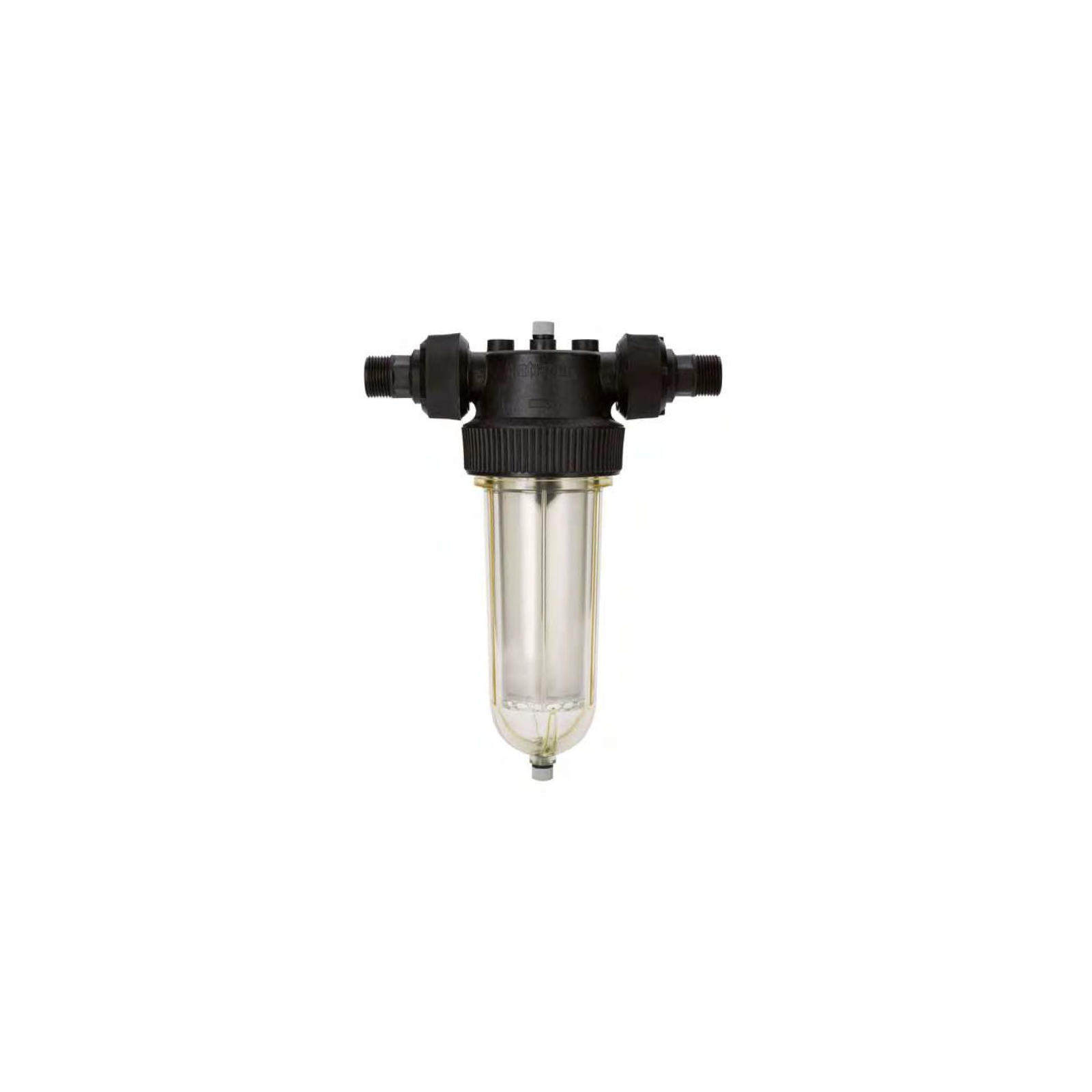

The Cintropur NW25 is a mechanical filter for industrial use, designed to filter clean water (drinking water, rainwater, well water, etc.). It stands out for its exclusive centrifugal filtration system, which separates heavier particles before the water passes through the filter cartridge.

Key Benefits :

• Made from food-grade synthetic materials, fully suitable for drinking water and liquid food products.

• Polypropylene head and transparent bowl, making it easy to visually check the level of buildup.

• Internal centrifugal impeller that creates a swirling effect, optimizing the settling of larger particles.

• Filtration at your chosen micron rating, with a fabric filter cartridge (standard 25 microns, other ratings available).

• Compatible with a pressure gauge for differential pressure monitoring.

Technical Specifications :

• Model : Cintropur NW25

• Connection : 1’’

• Average flow rate at ΔP = 0.2 bar : 5.5 m³/h

• Operating pressure : 10 bar

• Maximum pressure : 16 bar

• Maximum operating temperature : 50 °C

• Standard filtration : 25 microns

• Dimensions (H x W) : 355 mm x 230 mm

Ideal Applications :

• Water treatment upstream of a water softener or RO system

• Protection for household appliances and plumbing systems

• Pre-filtration for irrigation, spray systems, or household water systems
